An L1 3/4x1 3/4x1/4 angle is placed on top of the steel decking adjacent to each cut web and must extend three webs past the opening typically. Connections are made using an 1/8 by 1/2 weld or alternately a number 10 screw through an angle with a pre-drilled hole from the top or a self-drilling screw installed from below at each cut web. Multiple openings are considered a single opening unless dimensions C and E exceed specific calculated thresholds based on web spacing.

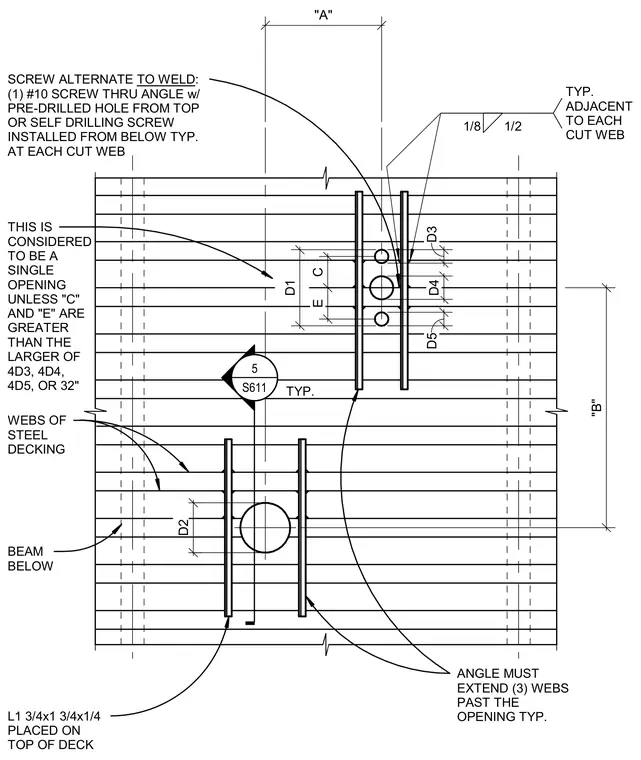

THIS IS CONSIDERED TO BE A SINGLE OPENING UNLESS "C" AND "E" ARE GREATER THAN THE LARGER OF 4D3, 4D4, 4D5, OR 32" WEBS OF STEEL DECKING BEAM BELOW ANGLE MUST EXTEND (3) WEBS PAST THE OPENING TYP. SCREW ALTERNATE TO WELD: (1) #10 SCREW THRU ANGLE w/ PRE-DRILLED HOLE FROM TOP OR SELF DRILLING SCREW INSTALLED FROM BELOW TYP. AT EACH CUT WEB L1 3/4x1 3/4x1/4 PLACED ON TOP OF DECK "A" D1 D2 "B" 1/8 1/2 TYP. ADJACENT TO EACH CUT WEB TYP. 5 S611 _____ C E D5 D4 D3
