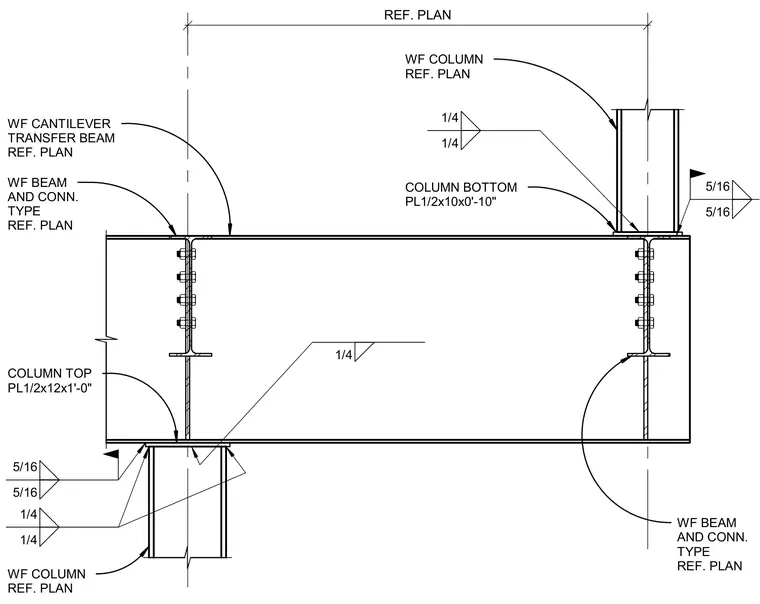

A wide flange cantilever transfer beam connects to wide flange columns above and below using welded base and top plates. The column bottom features a one-half by ten by ten-inch plate welded with quarter-inch and five-sixteenth-inch fillet welds. The column top incorporates a one-half by twelve by twelve-inch plate similarly secured with welded connections. Additional beam framing connections are referenced to plan drawings.
WF BEAM AND CONN. TYPE REF. PLAN WF CANTILEVER TRANSFER BEAM REF. PLAN WF COLUMN REF. PLAN COLUMN BOTTOM PL1/2x10x0'-10" WF COLUMN REF. PLAN WF BEAM AND CONN. TYPE REF. PLAN COLUMN TOP PL1/2x12x1'-0" 1/4 1/4 5/16 5/16 1/4 1/4 5/16 5/16 1/4 REF. PLAN
