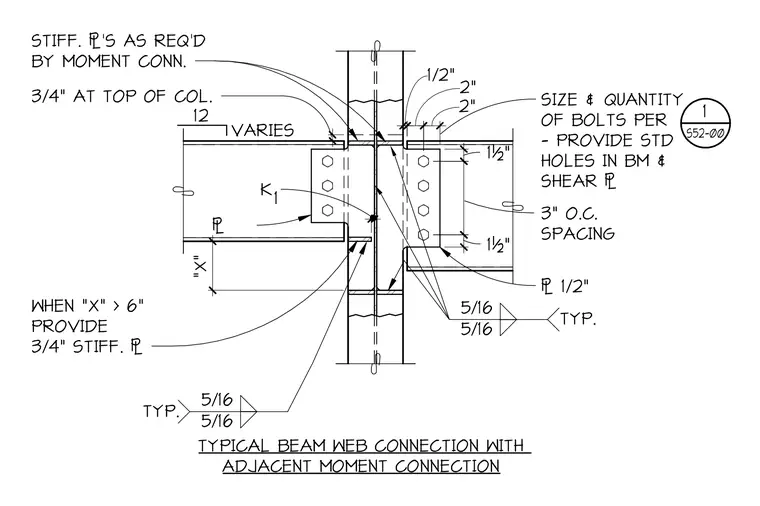

This structural detail shows a beam web connected to a steel column flange via a shear plate with standard holes and bolts spaced at three inches on center. A stiffener plate is provided at the top of the column as required by the moment connection, with additional three-quarter-inch stiffener plates added when the dimension X exceeds six inches. Fillet welds of five-sixteenth-inch size connect the shear plate and plates to the members. Standard bolt sizes and quantities are provided per the structural plans.
5/16 5/16 TYP. 1 1 /2" 9" 1 1 /2" 1½" 3" O.C. SPACING 1½" 1/2" 2" 2" SIZE & QUANTITY OF BOLTS PER - PROVIDE STD HOLES IN BM & SHEAR $ 1 S52-00 $ 1/2" 3/4 " 3/4" AT TOP OF COL. STIFF. $'S AS REQ'D BY MOMENT CONN. 12 VARIES "X" WHEN "X" > 6" PROVIDE 3/4" STIFF. $ 5/16 5/16 TYP. TYPICAL BEAM WEB CONNECTION WITH ADJACENT MOMENT CONNECTION 3/8 " K1 $
