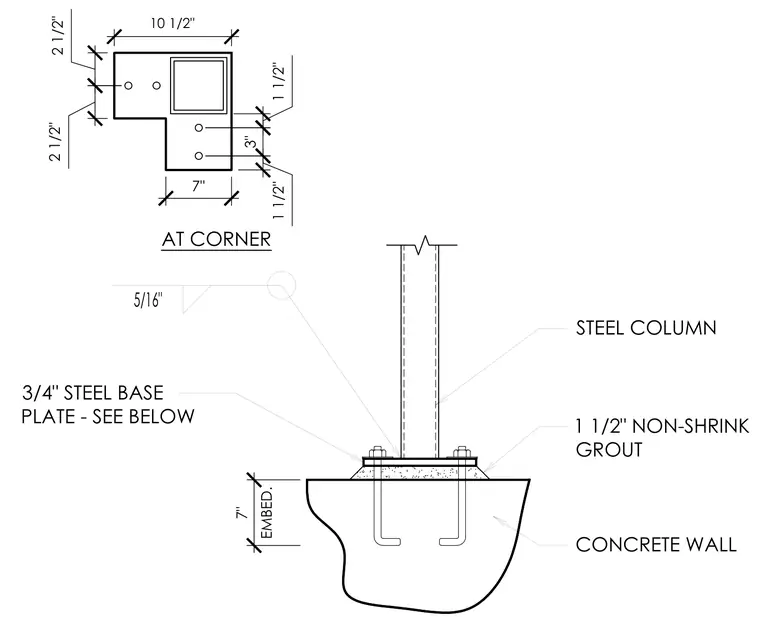

A structural steel column is welded to a three-quarter-inch steel base plate with a five-sixteenth-inch fillet weld. The assembly bears on a one-and-a-half-inch layer of non-shrink grout atop a concrete wall. Anchor bolts with a seven-inch embedment secure the base plate into the concrete wall.
7" EMBED. 5/16" 3/4" STEEL BASE PLATE - SEE BELOW STEEL COLUMN 1 1/2" NON-SHRINK GROUT CONCRETE WALL 10 1/2" 7" 1 1/2" 3" 1 1/2" 2 1/2" 2 1/2" AT CORNER
