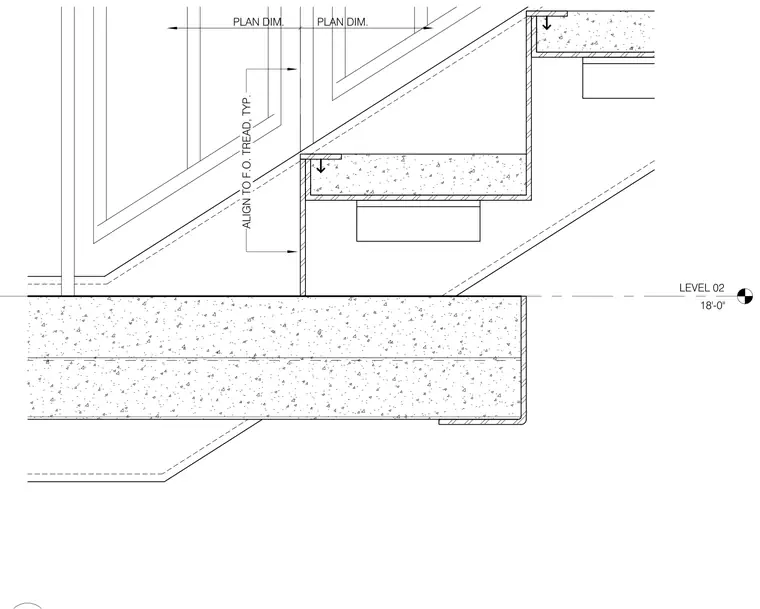

The stair landing concrete slab aligns with the Level 02 floor elevation at 18'-0". Plan dimensions and typical offsets govern the stair tread alignment relative to the structural framing.
PLAN DIM. PLAN DIM. ALIGN TO F.O. TREAD, TYP. LEVEL 02 18'-0"
