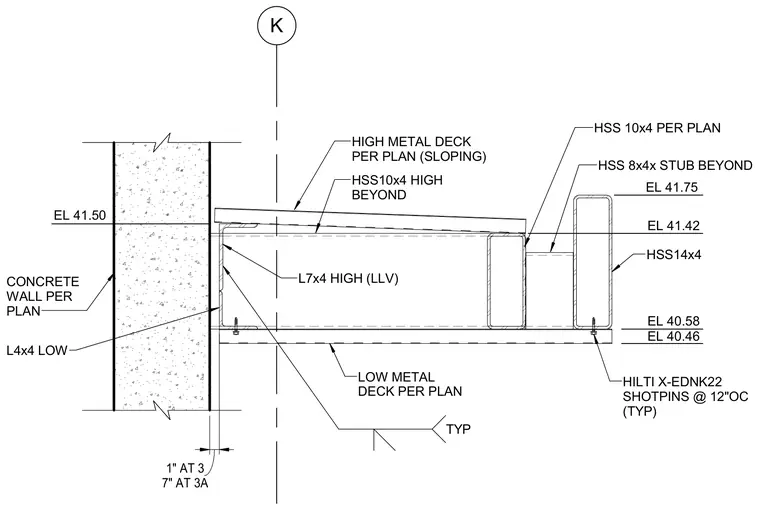

A low metal deck is fastened to low angle sections with Hilti X-EDNK22 shotpins spaced at twelve inches on center typical, bearing against a concrete wall sized per plan. A hollow structural section 10x4 high beyond and an angle L7x4 high with long leg vertical support a high sloping metal deck. Additional hollow structural sections including an HSS 8x4x stub beyond and an HSS 14x4 establish the upper framing tiers at elevations ranging from 40.46 to 41.75.
K 7" AT 3A 1" AT 3 EL 40.58 EL 41.42 EL 41.75 HSS 8x4x STUB BEYOND EL 40.46 HILTI X-EDNK22 SHOTPINS @ 12"OC (TYP) HSS 10x4 PER PLAN LOW METAL DECK PER PLAN EL 41.50 L7x4 HIGH (LLV) TYP L4x4 LOW HSS10x4 HIGH BEYOND CONCRETE WALL PER PLAN HIGH METAL DECK PER PLAN (SLOPING) HSS14x4
