Dunnage Platform Screenwall Steel Framing Details

Materials

Steel

Elements

Columns Beams Arches Connections / Plates

Connections

HSS Connection Bolted Connection

About this detail

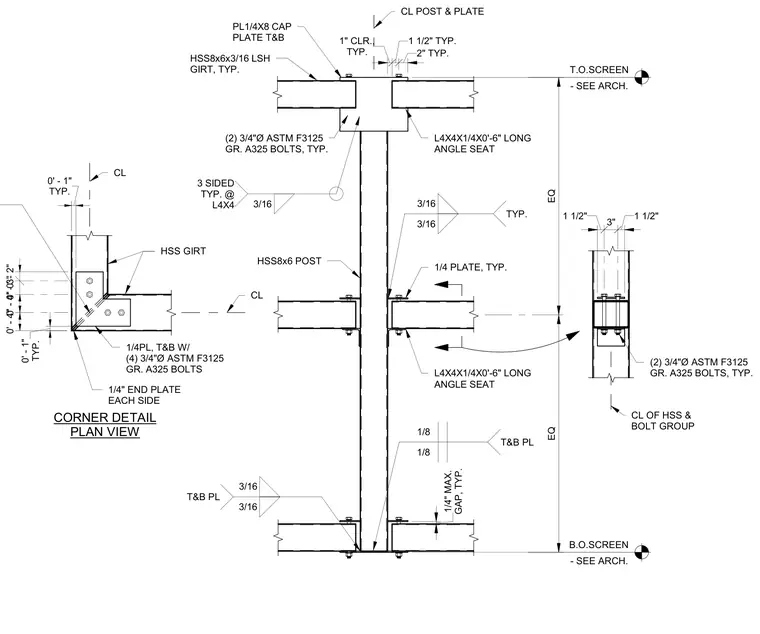

Structural steel framing for a dunnage platform screenwall consists of an HSS8x6 structural steel post connected to HSS8x6x3/16 girts. The girts attach to the post using L4x4x1/4 angle seats that are six inches long, secured with two three-quarter-inch diameter ASTM F3125 Grade A325 bolts. Top and bottom connections feature quarter-inch plates welded with three-sixteenth-inch fillet welds. A corner detail plan view shows intersecting girts framing into a quarter-inch end plate on each side, fastened with four three-quarter-inch diameter ASTM F3125 Grade A325 bolts through top and bottom quarter-inch plates. Cap plates measuring one-quarter by eight inches are provided at the top and bottom of the post assembly.
