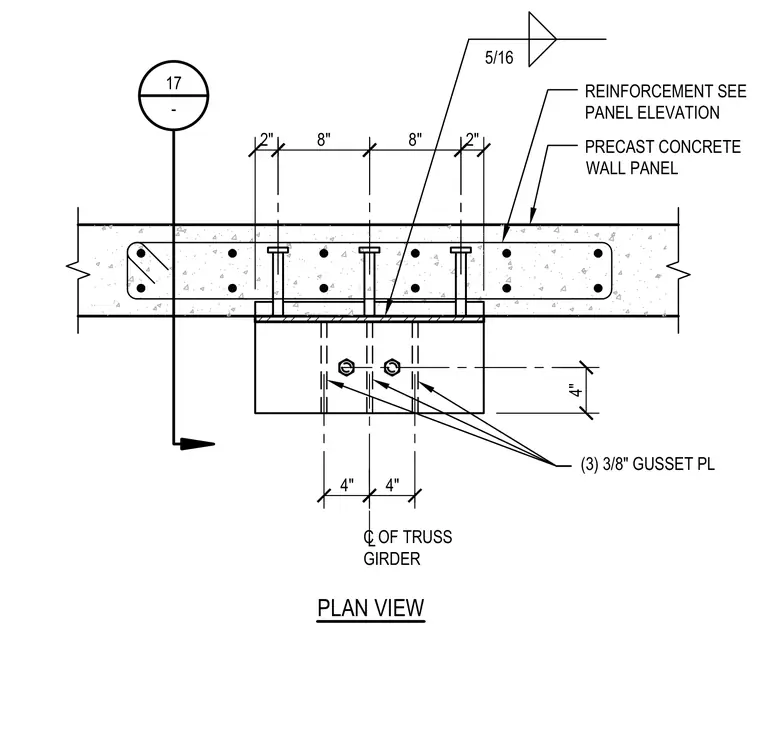

A structural truss girder connects to a precast concrete wall panel using three three-eighth-inch gusset plates and embedded anchorage studs. A five-sixteenth-inch fillet weld secures the connection assembly. Reinforcement within the concrete wall panel is detailed per the panel elevation.
2" 2" PLAN VIEW (3) 3/8" GUSSET PL 4" C OF TRUSS GIRDER L 4" 8" 8" 17 - 5/16 PRECAST CONCRETE WALL PANEL REINFORCEMENT SEE PANEL ELEVATION 4"
