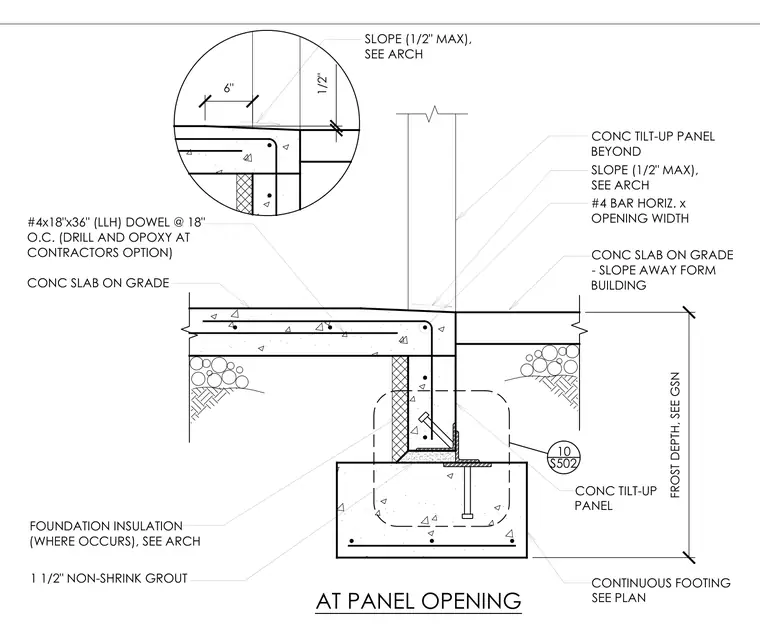

A concrete tilt-up wall panel bears on a continuous concrete footing with a one-and-a-half-inch non-shrink grout bed. A concrete slab-on-grade abuts the wall panel with a slope away from the building, tied with number four by eighteen-inch by thirty-inch long-leg horizontal dowels spaced at eighteen inches on center, which may be drilled and epoxied at the contractor's option. Foundation insulation is installed where indicated per architectural drawings. A number four horizontal reinforcing bar spans the panel opening width. An inset detail highlights the threshold slope of up to one-half inch maximum at the panel opening.
1 1/2" NON-SHRINK GROUT CONC SLAB ON GRADE - SLOPE AWAY FORM BUILDING #4x18"x36" (LLH) DOWEL @ 18" O.C. (DRILL AND OPOXY AT CONTRACTORS OPTION) CONC SLAB ON GRADE CONC TILT-UP PANEL BEYOND #4 BAR HORIZ. x OPENING WIDTH CONTINUOUS FOOTING SEE PLAN FOUNDATION INSULATION (WHERE OCCURS), SEE ARCH FROST DEPTH, SEE GSN CONC TILT-UP PANEL AT PANEL OPENING SLOPE (1/2" MAX), SEE ARCH 10 S502 6" 1/2" SLOPE (1/2" MAX), SEE ARCH ss 2 4 A 4 A I 4 A 4 4 2 I I 4%, 44 ' <1
