Deck Span Perpendicular or Skewed to Wall

Materials

Reinforced Concrete Steel Timber / Wood Glass / Glazing

Elements

Walls Floors / Slabs Decks Entrances Site / Paving Reinforcing

Connections

Welded Connection Shear Stud / Composite Rebar Splice / Development Deck Attachment

About this detail

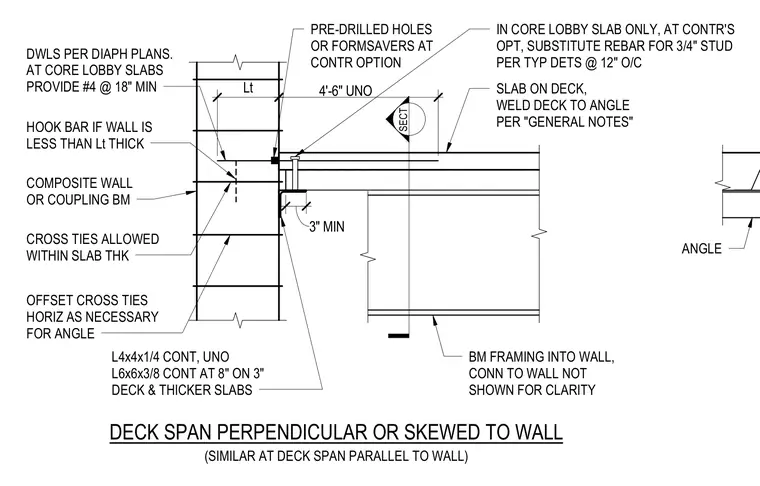

A slab on metal deck bears on a continuous steel angle anchored to a concrete wall or coupling beam. The angle size is specified as L4x4x1/4 continuous as unnotched otherwise, or L6x6x3/8 continuous at eight inches on three-inch deck and thicker slabs. The metal deck is welded to the support angle per general notes. Horizontal cross ties are provided within the slab thickness and offset horizontally as necessary for the angle. Dowels are detailed per diaphragm plans, with number four bars at eighteen inches minimum provided at core lobby slabs. Pre-drilled holes or formsavers are utilized at the contractor's option, and in core lobby slabs only, rebar may be substituted for three-quarter-inch studs at twelve inches on center.
