Structural · S-XD6Y5

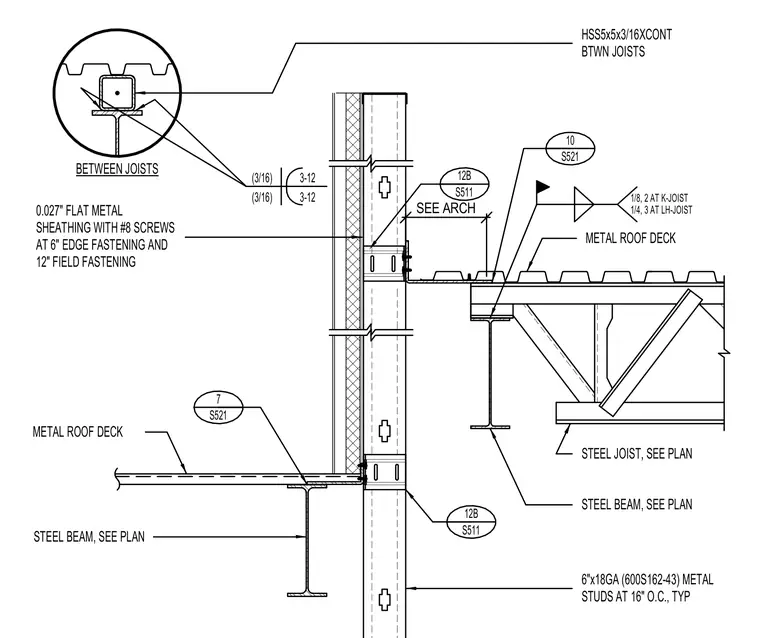

Roof Offset Detail with Steel Joist and Metal Stud Wall

Materials

Steel Cold-formed Steel Timber / Wood Metal (misc.)

Elements

Beams Roofs Decks Arches

Connections

Deck Attachment

About this detail

A metal roof deck bears on a structural steel joist and steel beam assembly that steps down adjacent to a cold-formed metal stud wall. The exterior wall is framed with six-inch by eighteen-gauge metal studs spaced at sixteen inches on center, clad with point zero two seven-inch flat metal sheathing secured with number eight screws at six-inch edge fastening and twelve-inch field fastening between joists. A continuous hollow structural section measuring five by five by three-sixteenths inches runs between the joists. Fillet welds of three-sixteenths inch secure components with specific spacings indicated. A separate lower metal roof deck bears on its own supporting steel beam.
