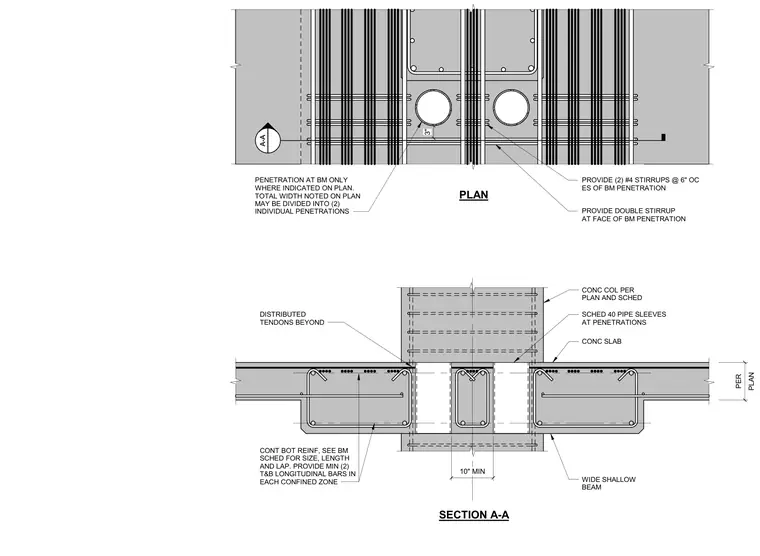

A vertical pipe penetration passes through a wide shallow concrete beam adjacent to a concrete column. Schedule 40 pipe sleeves form the penetrations, with total widths divided into individual openings as indicated on plan. Reinforcement around the openings consists of two number four stirrups at six inches on center on each side of the beam penetration, supplemented by a double stirrup at the face of the penetration. Continuous bottom reinforcement and a minimum of two top and bottom longitudinal bars are provided in each confined zone. Distributed tendons run beyond the assembly within the concrete slab and beam construction.
A-A A-A DISTRIBUTED TENDONS BEYOND SCHED 40 PIPE SLEEVES AT PENETRATIONS CONC SLAB WIDE SHALLOW BEAM CONC COL PER PLAN AND SCHED PLAN PER CONT BOT REINF, SEE BM SCHED FOR SIZE, LENGTH AND LAP. PROVIDE MIN (2) T&B LONGITUDINAL BARS IN EACH CONFINED ZONE 10" MIN PLAN SECTION A-A PROVIDE (2) #4 STIRRUPS @ 6" OC ES OF BM PENETRATION PROVIDE DOUBLE STIRRUP AT FACE OF BM PENETRATION 3" PENETRATION AT BM ONLY WHERE INDICATED ON PLAN. TOTAL WIDTH NOTED ON PLAN MAY BE DIVIDED INTO (2) INDIVIDUAL PENETRATIONS
