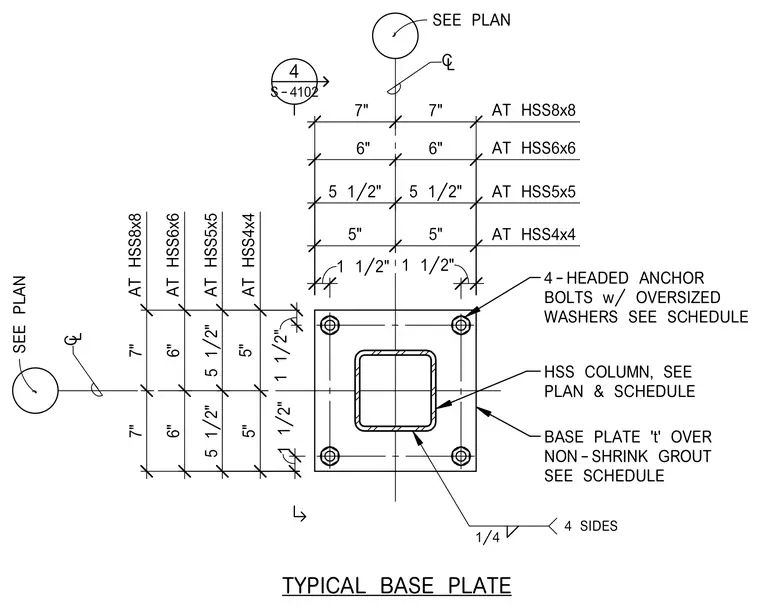

This structural detail shows a typical base plate plan for a hollow structural section column welded to a steel base plate with a thickness sized per schedule over non-shrink grout. Four headed anchor bolts with oversized washers secure the assembly, positioned at varying dimensions depending on whether supporting an HSS8x8, HSS6x6, HSS5x5, or HSS4x4 column. A one-quarter inch fillet weld connects the column to the base plate on all four sides. Dimension lines detail anchor bolt spacings and edge clearances relative to column centerlines.
SEE PLAN C L SEE PLAN C L 4-HEADED ANCHOR BOLTS w/ OVERSIZED WASHERS SEE SCHEDULE HSS COLUMN, SEE PLAN & SCHEDULE BASE PLATE 't' OVER NON-SHRINK GROUT SEE SCHEDULE 1 1/2" 1 1/2" 5" 5" 5 1/2" 5 1/2" 6" 6" 7" 7" 5" 5" 5 1/2" 5 1/2" 6" 6" 7" 7" 1 1/2" 1 1/2" AT HSS8x8 AT HSS8x8 4 SIDES 1/4 TYPICAL BASE PLATE AT HSS6x6 AT HSS5x5 AT HSS4x4 AT HSS6x6 AT HSS5x5 AT HSS4x4 4 S-4102
