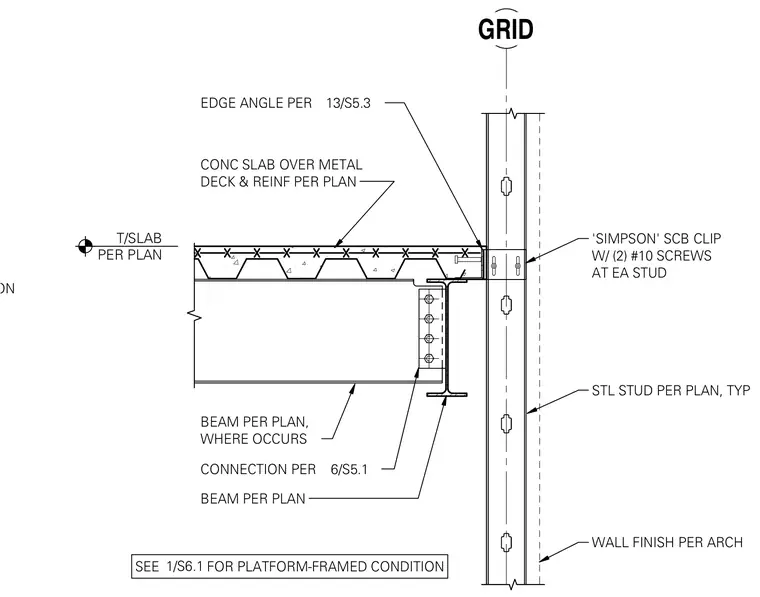

A balloon-framed exterior wall connects to a concrete slab over a metal deck and steel floor beam at the grid line. The steel stud wall is secured to the structure with a Simpson SCB clip fastened using two number 10 screws per stud. A concrete slab with reinforcing over a metal deck bears on an edge angle, and a framing beam connects to the structural support with a detailed shear connection. Wall finishes are applied per architectural specifications to complete the assembly.
WALL FINISH PER ARCH STL STUD PER PLAN, TYP EDGE ANGLE PER CONC SLAB OVER METAL DECK & REINF PER PLAN BEAM PER PLAN, WHERE OCCURS BEAM PER PLAN 'SIMPSON' SCB CLIP W/ (2) #10 SCREWS AT EA STUD T/SLAB PER PLAN GRID CONNECTION PER 6/S5.1 13/S5.3 SEE FOR PLATFORM-FRAMED CONDITION 1/S6.1 ACCOMODATE 3/4" DEFLECTION
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
