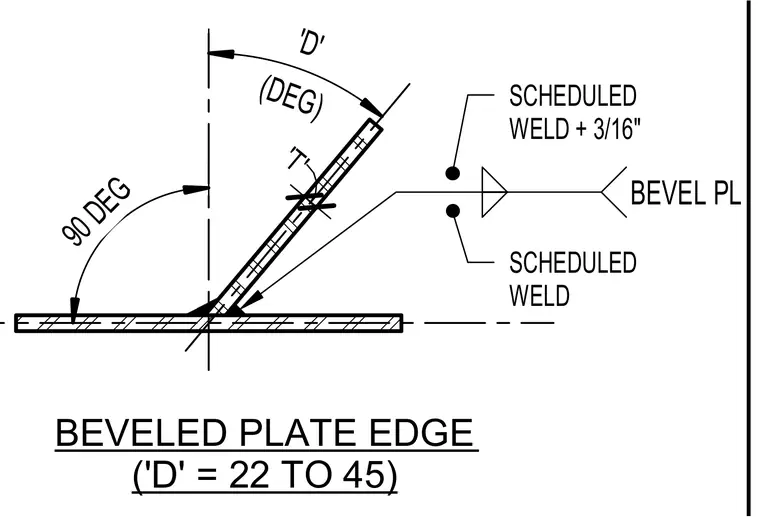

A beveled plate connects to a supporting plate at an angle ranging from twenty-two to forty-five degrees. The connection utilizes a scheduled weld combined with an additional three-sixteenths inch weld on one side and a standard scheduled weld on the reverse side.
BEVEL PL BEVELED PLATE EDGE ('D' = 22 TO 45) SCHEDULED WELD + 3/16" SCHEDULED WELD (DEG) 'D' 'T' 90 DEG
