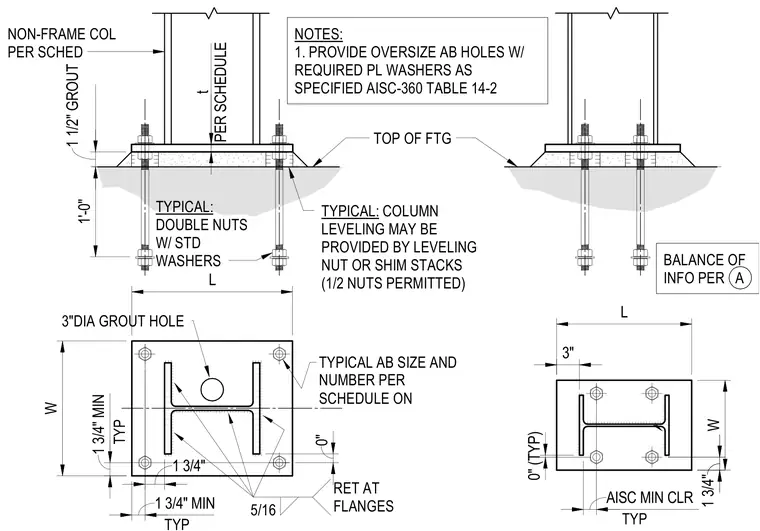

A non-frame structural steel column bears on a steel base plate set over a one-and-a-half-inch grout pad above the top of the concrete footing. Four anchor bolts with standard washers and double nuts secure the plate, featuring oversize holes per AISC-360 Table 14-2 with required plate washers. Column leveling is achieved using leveling nuts or shim stacks, with half-nuts permitted. A three-inch diameter grout hole is provided in the base plate, and five-sixteenth-inch fillet welds attach the column flanges to the plate.
TYP W L AISC MIN CLR TOP OF FTG BALANCE OF INFO PER A NOTES: 1. PROVIDE OVERSIZE AB HOLES W/ REQUIRED PL WASHERS AS SPECIFIED AISC-360 TABLE 14-2 3" 1 3/4" 0" (TYP) TYP TYPICAL: DOUBLE NUTS W/ STD WASHERS TYPICAL: COLUMN LEVELING MAY BE PROVIDED BY LEVELING NUT OR SHIM STACKS (1/2 NUTS PERMITTED) 3"DIA GROUT HOLE TYPICAL AB SIZE AND NUMBER PER SCHEDULE ON RET AT FLANGES 5/16 W L 1 1/2" GROUT 1'-0" PER SCHEDULE t 1 3/4" MIN 1 3/4" MIN NON-FRAME COL PER SCHED 0" 1 3/4"
