Structural · S-XCJRF

HSS Bracing Gusset Plate Connections at Column and Beam

Materials

Steel

Elements

Floors / Slabs Bracing Connections / Plates

Connections

Gusset Plate HSS Connection Bracing Connection Welded Connection

About this detail

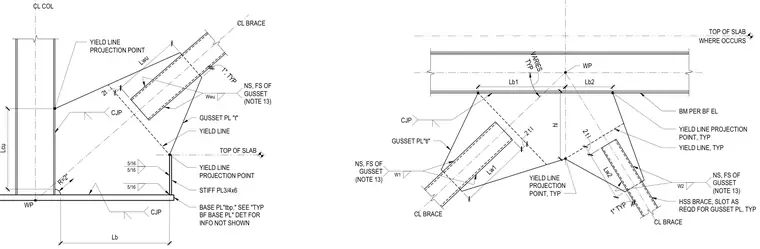

Structural steel bracing connections feature hollow structural section braces intersecting with columns and beams via gusset plates. The connection utilizes complete joint penetration and fillet welds of five-sixteenths inch sizing, along with stiffener plates measuring three-quarters by six inches. The gusset plates incorporate slotted openings as required for the brace insertion, with yield line projection points dimensioned across the assembly. Base plates and beam framing follow specific elevation parameters indicated in the primary drawings.
