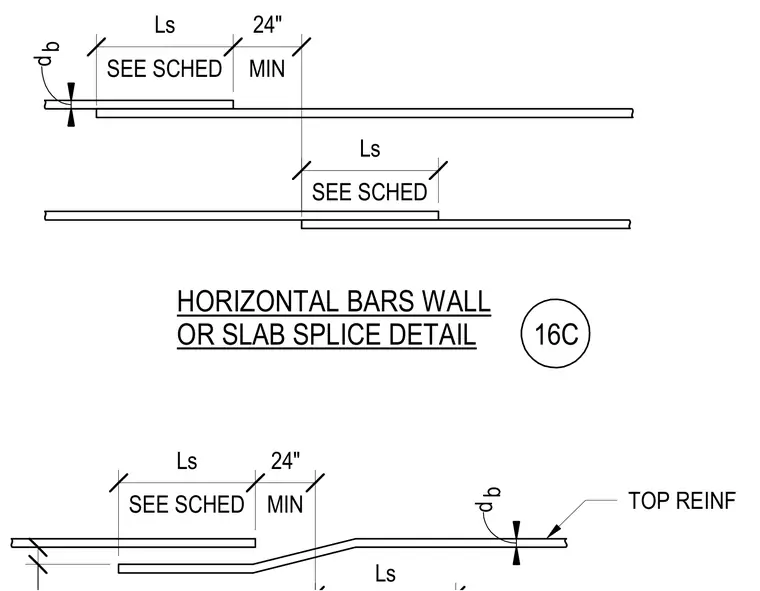

Horizontal reinforcing bars in walls and slabs lap splice with a development length of Ls per schedule plus a twenty-four inch minimum offset. Top reinforcement maintains bar diameter spacing db and transitions through a jog in the splice zone. Lap lengths and bar sizes conform to the structural schedule.
HORIZONTAL BARS WALL OR SLAB SPLICE DETAIL TOP REINF b SEE SCHED Ls MIN 24" SEE SCHED Ls d b SEE SCHED Ls MIN 24" Ls d 16C
