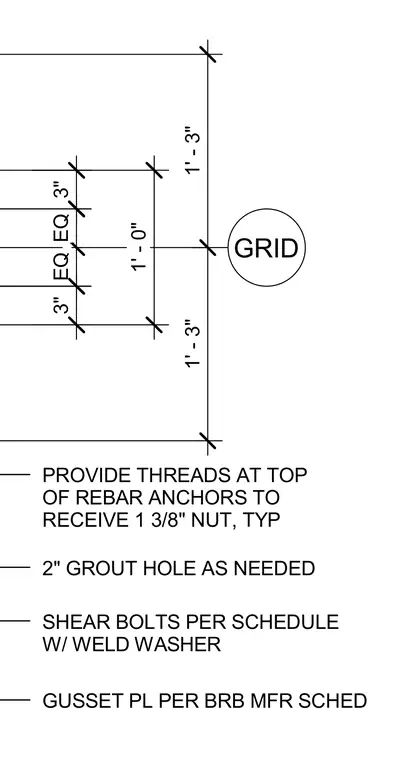

This structural connection detail features a gusset plate sized per the buckling-restrained brace manufacturer schedule, secured with shear bolts with weld washers. Rebar anchors are provided with threaded tops to receive typical one-and-three-eighths-inch nuts. A two-inch grout hole is included as needed for the assembly. Dimensions are referenced from a structural grid line.
GRID 1' - 3" 1' - 3" 1' - 0" 3" EQ EQ 3" GUSSET PL PER BRB MFR SCHED SHEAR BOLTS PER SCHEDULE W/ WELD WASHER 2" GROUT HOLE AS NEEDED PROVIDE THREADS AT TOP OF REBAR ANCHORS TO RECEIVE 1 3/8" NUT, TYP
