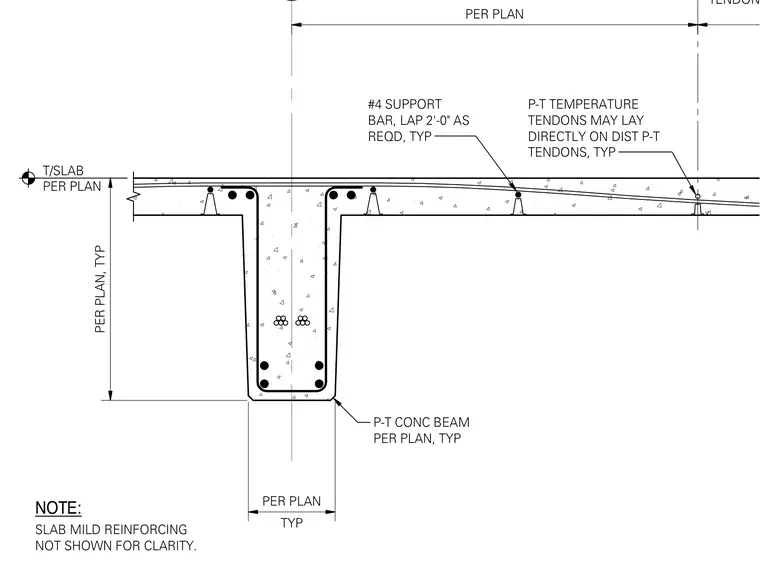

A post-tensioned concrete beam with integrated slab features post-tensioned concrete tendons and reinforcing bars sized per plan. Number four support bars are spaced typically with two-foot laps as required. Post-tensioned temperature tendons may lay directly on distributed post-tensioned tendons. Slab mild reinforcing is omitted from the view for clarity.
PER PLAN PER PLAN, TYP TYP PER PLAN TENDON NOTE: SLAB MILD REINFORCING NOT SHOWN FOR CLARITY. P-T CONC BEAM PER PLAN, TYP #4 SUPPORT BAR, LAP 2'-0" AS REQD, TYP P-T TEMPERATURE TENDONS MAY LAY DIRECTLY ON DIST P-T TENDONS, TYP T/SLAB PER PLAN
