Structural · S-XCCVP

Elevator Shaft and Rail Support at Attic Level

Materials

Steel

Elements

Columns Beams Trusses

Connections

HSS Connection Bolted Connection

About this detail

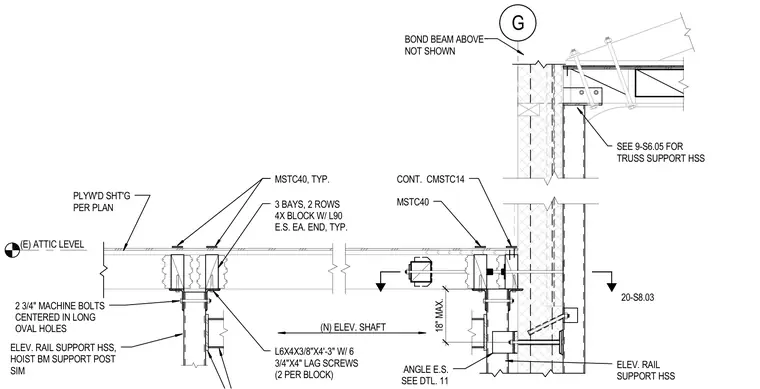

The new elevator shaft connects to structural framing using hollow structural section supports, a hoist beam support post, and an L6x4x3/8-inch angle measuring four feet three inches long secured with six 3/4-inch by 4-inch lag screws, with two lag screws per block. Framing incorporates three bays with two rows of 4x wood blocking featuring L90 angles at each end typically, alongside two 3/4-inch machine bolts centered in long oval holes with a maximum spacing of eighteen inches. Continuous CMSTC14 and MSTC40 straps tie the assembly together, supported by plywood sheathing sized per plan and a bond beam located above as indicated. An existing attic level floor intersects with the shaft wall assembly, referencing additional support details for roof trusses.
