Typical Concrete Coupling Beam Reinforcement Section

Elements

About this detail

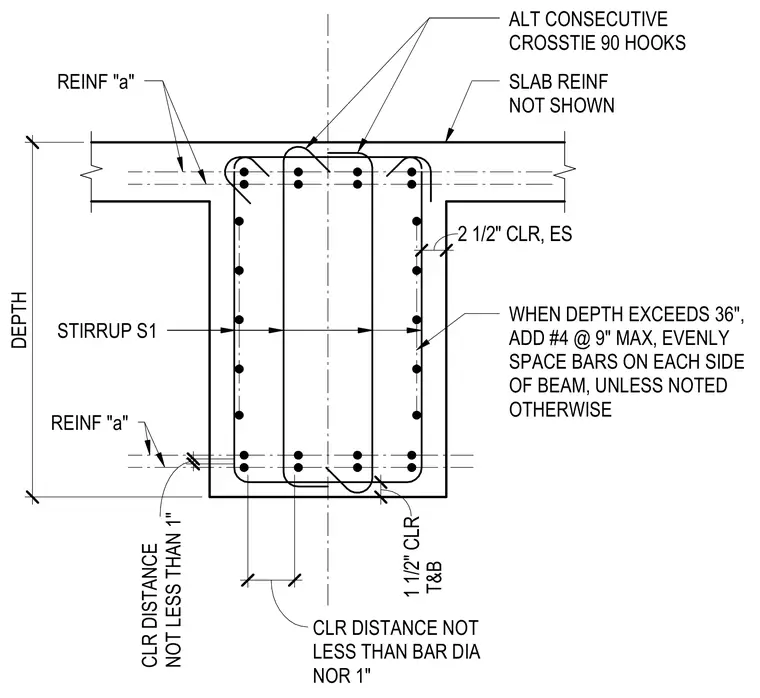

A reinforced concrete coupling beam section is detailed with top and bottom reinforcing bars labeled as reinforcement A, closed stirrups designated as stirrup S1, and alternating consecutive crossties featuring ninety-degree hooks. Slab reinforcement is omitted from the view for clarity. Clear cover is maintained at one and one-half inches top and bottom and two and one-half inches each side, with minimum clear distances specified as not less than the bar diameter nor one inch. When the beam depth exceeds thirty-six inches, number four bars are added at nine inches maximum spacing, evenly spaced on each side of the beam unless noted otherwise.
