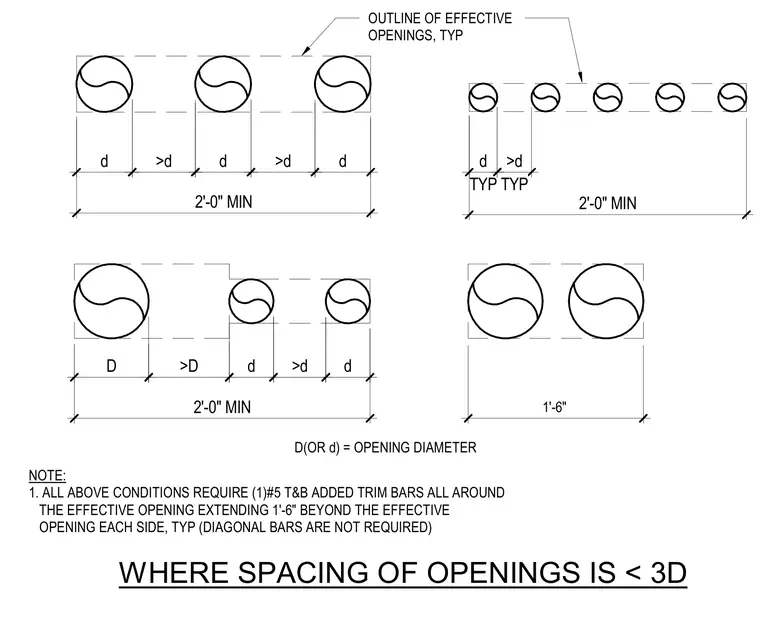

Where spacing between openings is less than three times the diameter, effective opening outlines govern the required reinforcing layout. Each condition requires one number 5 top and bottom added trim bar placed all around the effective opening and extending 1 foot 6 inches beyond the opening on each side. Diagonal reinforcing bars are omitted for these closely spaced configurations. Minimum clearances and dimensions dictate the transition between varying opening diameters.
WHERE SPACING OF OPENINGS IS < 3D OUTLINE OF EFFECTIVE OPENINGS, TYP NOTE: 1. ALL ABOVE CONDITIONS REQUIRE (1)#5 T&B ADDED TRIM BARS ALL AROUND THE EFFECTIVE OPENING EXTENDING 1'-6" BEYOND THE EFFECTIVE OPENING EACH SIDE, TYP (DIAGONAL BARS ARE NOT REQUIRED) D(OR d) = OPENING DIAMETER d d >d >d d 2'-0" MIN TYP d TYP >d 2'-0" MIN D >D d >d d 2'-0" MIN . 1'-6"
