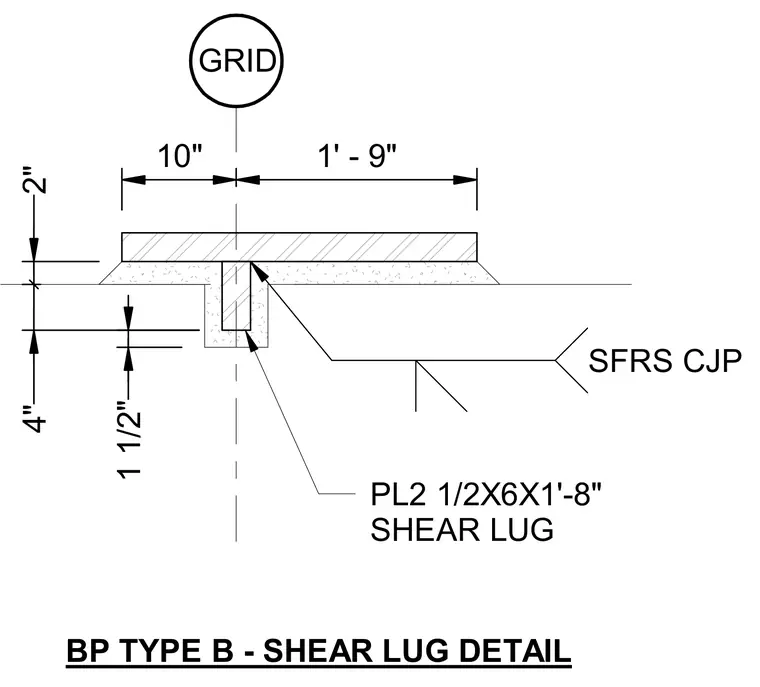

A structural base plate features a welded shear lug measuring two and one-half inches by six inches by one foot eight inches, embedded into a concrete element. The shear lug is joined using a complete joint penetration weld with special fracture-resistant steel detailing. The plate assembly is positioned relative to a structural grid line with precise offset dimensions.
GRID PL2 1/2X6X1'-8" SHEAR LUG 4" 2" SFRS CJP BP TYPE B - SHEAR LUG DETAIL 10" 1' - 9" 1 1/2"
