Structural · S-XBXKB

Typical Interior Masonry Wall on Masonry Curb

Materials

Concrete Reinforced Concrete Masonry / CMU

Elements

Walls Floors / Slabs Foundations / Footings Site / Paving Anchors / Embeds Reinforcing

Connections

Rebar Splice / Development

About this detail

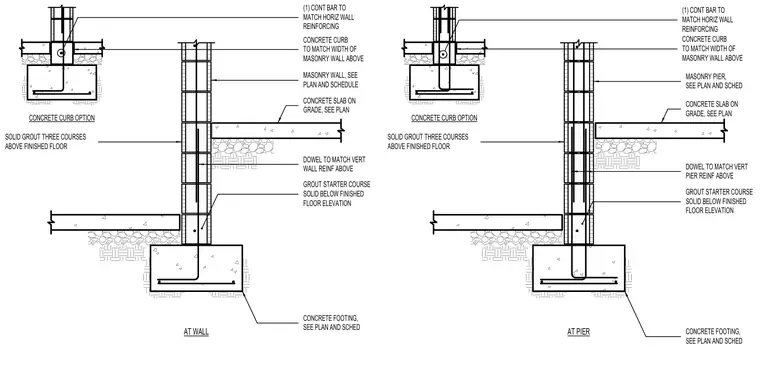

Interior masonry wall and masonry pier construction is supported on concrete footings with adjacent concrete slab-on-grade conditions. Vertical reinforcement dowels match the size of the vertical wall or pier reinforcement above and anchor directly into the concrete footing. A grout starter course is specified solid below the finished floor elevation. The masonry wall and pier extend upward to a concrete curb option sized to match the width of the masonry wall above, containing one continuous horizontal reinforcing bar matching the horizontal wall reinforcement.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
