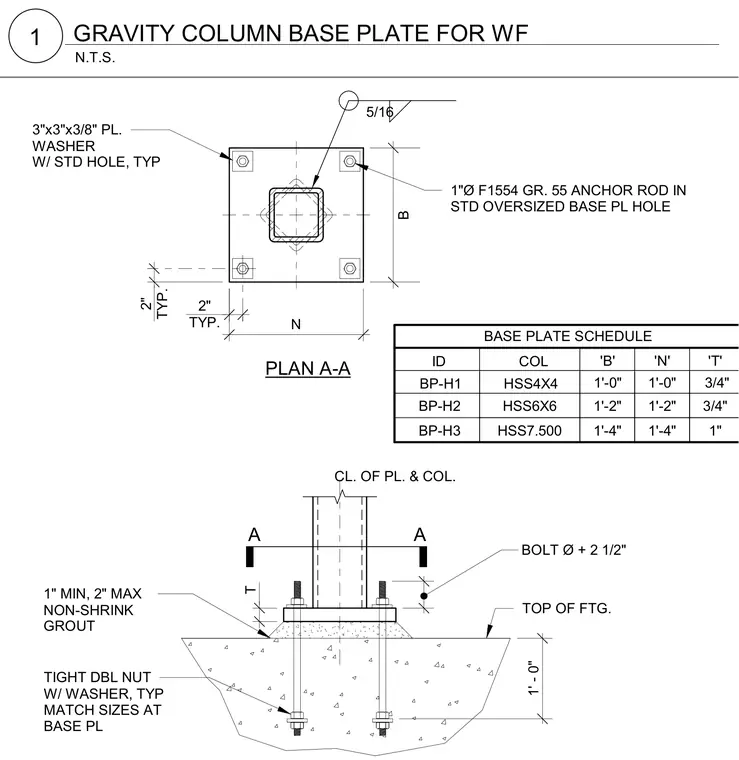

A gravity column base plate connection for a hollow structural section column bears on a concrete footing. The hollow structural section column is welded to the base plate with a 5/16-inch fillet weld around the perimeter. The base plate is secured by four 1-inch diameter ASTM F1554 Grade 55 anchor rods passing through standard oversized holes with 3-inch by 3-inch by 3/8-inch plate washers and tight double nuts with washers typically matching sizes at the base plate. A 1-inch minimum to 2-inch maximum layer of non-shrink grout is provided beneath the base plate over the top of the footing. A base plate schedule provides dimensions for various column sizes including HSS4X4, HSS6X6, and HSS7.500.
B N T 2" TYP. 2" TYP. 5/16 TOP OF FTG. CL. OF PL. & COL. A 3"x3"x3/8" PL. WASHER W/ STD HOLE, TYP A PLAN A-A HSS6X6 1'-2" 'T' 'B' COL BASE PLATE SCHEDULE 1'-2" 3/4" 1"Ø F1554 GR. 55 ANCHOR ROD IN STD OVERSIZED BASE PL HOLE 1" MIN, 2" MAX NON-SHRINK GROUT 1' - 0" TIGHT DBL NUT W/ WASHER, TYP MATCH SIZES AT BASE PL 1'-0" HSS4X4 1'-0" 3/4" 'N' BP-H2 ID BP-H1 HSS7.500 1'-4" 1'-4" 1" BP-H3 BOLT Ø + 2 1/2" N.T.S. 1 GRAVITY COLUMN BASE PLATE FOR WF
