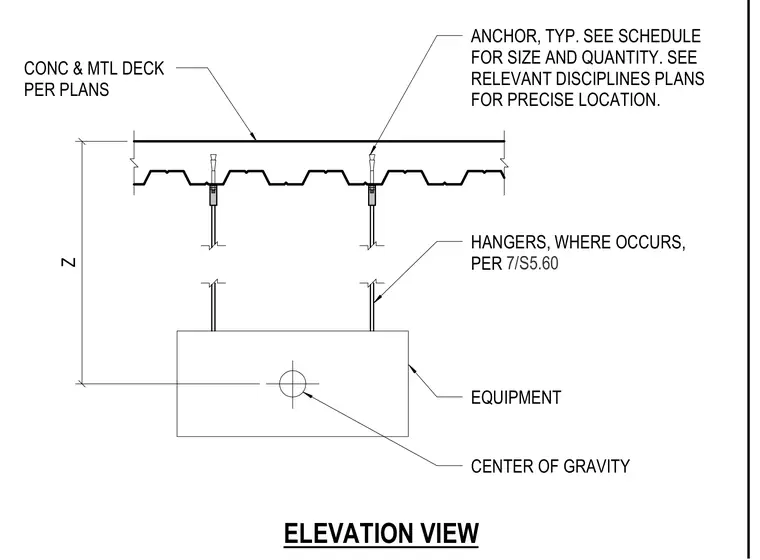

Suspended equipment is anchored below a concrete slab and metal deck assembly using vertical hangers positioned per relevant structural details. Typical anchors secure the overhead connection while sizing and quantities are coordinated per schedule. The equipment unit is detailed with a designated center of gravity for proper load distribution.
CENTER OF GRAVITY EQUIPMENT CONC & MTL DECK PER PLANS Z ANCHOR, TYP. SEE SCHEDULE FOR SIZE AND QUANTITY. SEE RELEVANT DISCIPLINES PLANS FOR PRECISE LOCATION. ELEVATION VIEW HANGERS, WHERE OCCURS, PER 0/S0.00 7/S5.60
