Structural · S-XBES3

Composite Floor Deck Edge Condition at Steel Beam

Materials

Concrete Steel

Elements

Floors / Slabs Decks Roof / Floor Openings

Connections

Shear Stud / Composite Deck Attachment

About this detail

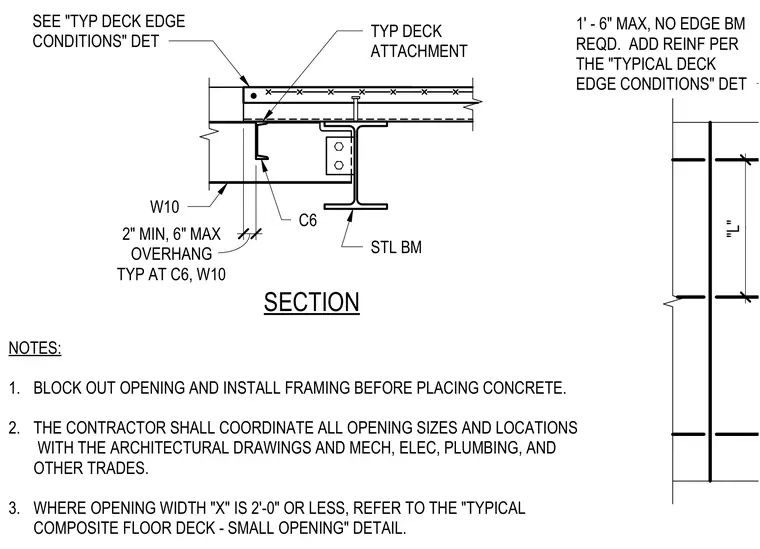

This structural detail shows a composite floor deck bearing on a W10 steel beam and a C6 channel edge member. The metal deck features typical deck attachment with a 2 inch minimum and 6 inch maximum overhang at the channel and steel beam. Additional reinforcement and edge conditions are specified for openings up to 1 foot 6 inches max without an edge beam required. General notes require blocking out openings and installing framing before placing concrete.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
