Two cold-formed steel studs are fastened to opposite faces of a hollow structural section member. The attachment is made using one-quarter inch diameter Tek screws spaced at twelve inches on center for each stud, complying with ICC-ES evaluation report ER-1976. A maximum dimension of five feet is maintained.

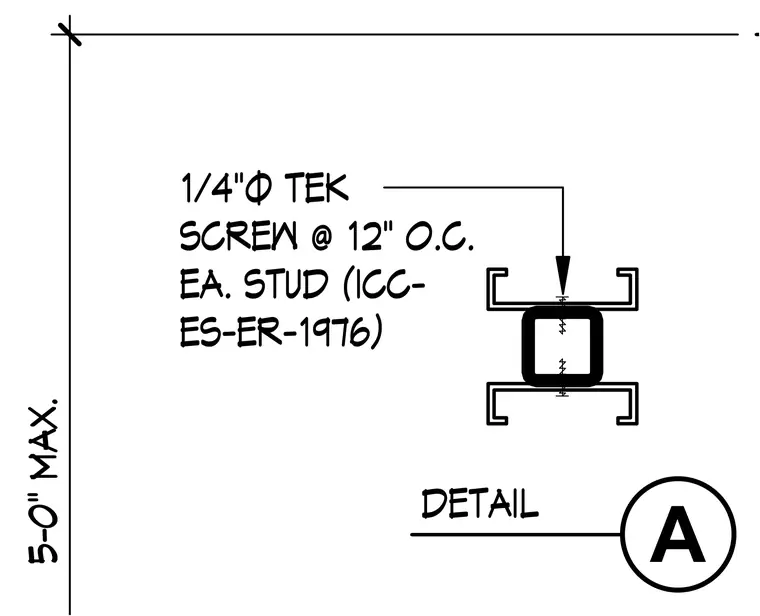

DETAIL A 1/4"Ø TEK SCREW @ 12" O.C. EA. STUD (ICC- ES-ER-1976) 5-0" MAX.
