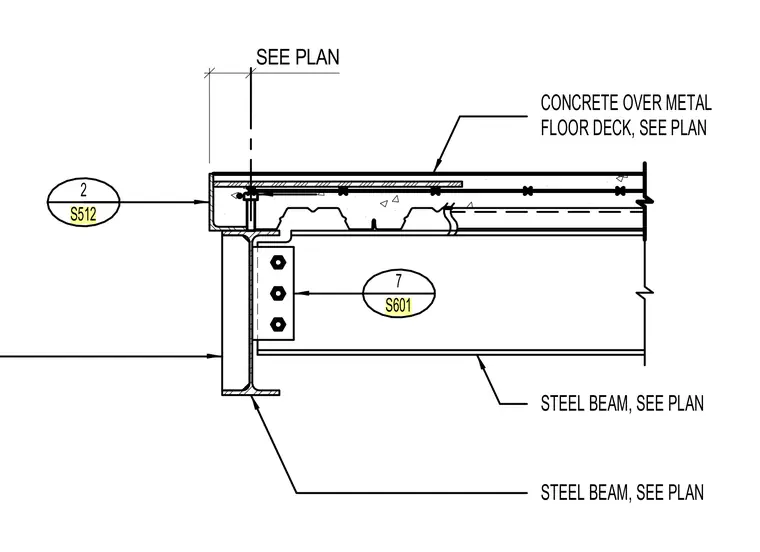

A concrete slab over metal floor deck bears on a structural steel beam sized per plan. The steel beam connects to a perpendicular framing member using a shear tab with three bolts, referenced to detail seven on sheet S601. An edge angle or perimeter flashing assembly is anchored at the slab edge, referenced to detail two on sheet S512.
SEE PLAN STEEL BEAM, SEE PLAN CONCRETE OVER METAL FLOOR DECK, SEE PLAN STEEL BEAM, SEE PLAN 7 S601 2 S512
