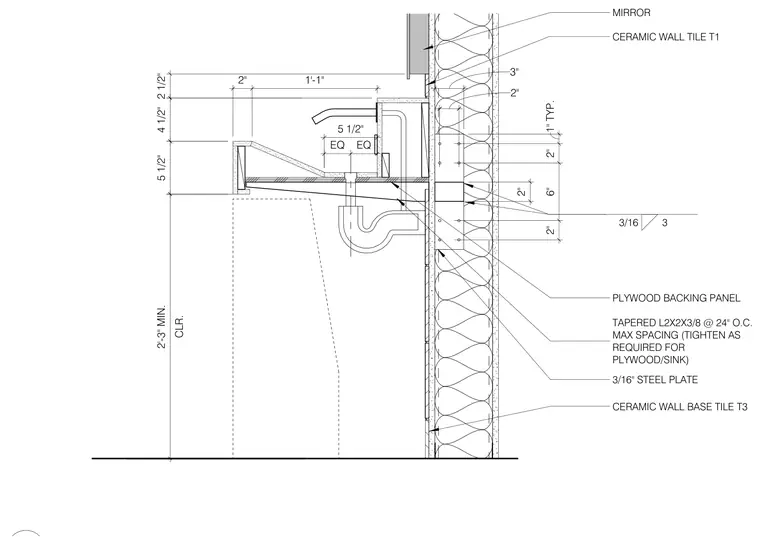

A sink vanity and mirror assembly is mounted to a wall backed by a three-sixteenth-inch steel plate and tapered two-by-two-by-three-eighths-inch angles spaced at twenty-four inches on center maximum, tightened as required for the plywood and sink. The wall assembly is finished with ceramic wall tile T1 and ceramic wall base tile T3 over a plywood backing panel. A mirror is positioned above the vanity, which provides a minimum clearance of two feet three inches below.
5 1/2" 4 1/2" CLR. 2'-3" MIN. 2 1/2" PLYWOOD BACKING PANEL MIRROR 1'-1" 2" 5 1/2" CERAMIC WALL TILE T1 TAPERED L2X2X3/8 @ 24" O.C. MAX SPACING (TIGHTEN AS REQUIRED FOR PLYWOOD/SINK) 3/16 3 3/16" STEEL PLATE CERAMIC WALL BASE TILE T3 EQ EQ 3" 2" 2" 6" 2" 1" TYP. 2"
