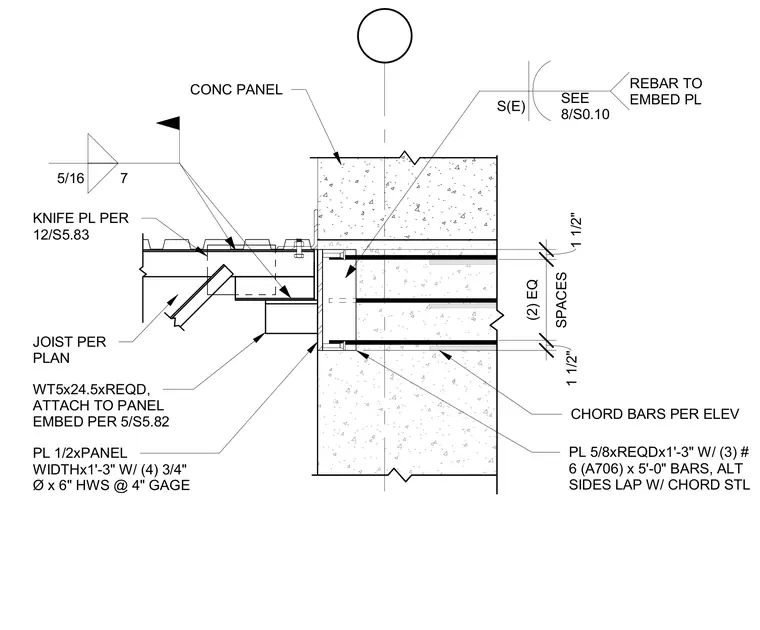

An open web steel joist bears on a structural WT shape attached to a concrete panel embed plate. A knife plate welded with a five-sixteenths inch fillet weld connects the assembly. The embed plate measures five-eighths inch by required dimensions by one foot three inches, anchored with four three-quarter inch diameter by six inch headed stud anchors at a four inch gauge. Chord bars per elevation are provided with three number six A706 bars by five feet long on alternate sides, lapping with chord steel.
CHORD BARS PER ELEV JOIST PER PLAN WT5x24.5xREQD, ATTACH TO PANEL EMBED PER 5/S5.82 PL 5/8xREQDx1'-3" W/ (3) # 6 (A706) x 5'-0" BARS, ALT SIDES LAP W/ CHORD STL S(E) SEE 8/S0.10 REBAR TO EMBED PL 5/16 7 KNIFE PL PER 12/S5.83 PL 1/2xPANEL WIDTHx1'-3" W/ (4) 3/4" Ø x 6" HWS @ 4" GAGE CONC PANEL 1 1/2" SPACES (2) EQ 1 1/2"
