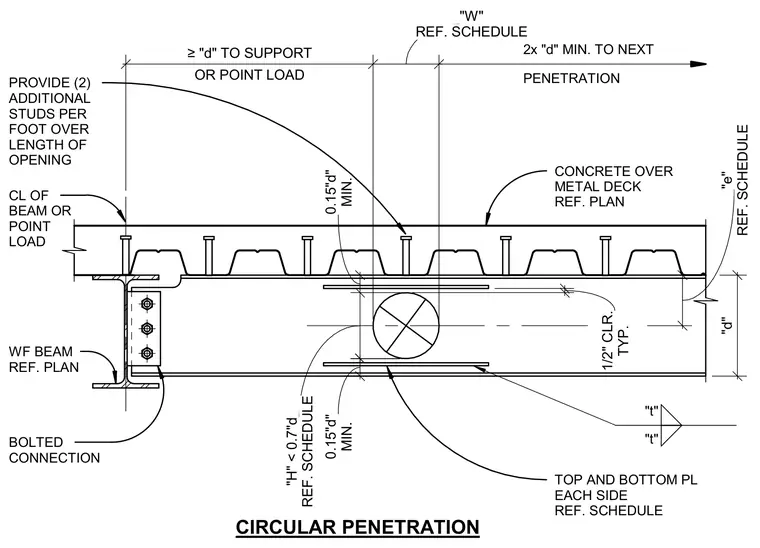

A circular penetration is cut through the web of a wide flange beam supporting a concrete slab over metal deck. Top and bottom reinforcing plates are welded to each side of the web above and below the opening, sized per schedule with a minimum clearance of 0.15 times the diameter. Two additional shear studs per foot are provided over the length of the opening. The beam connects to a supporting member via a bolted connection at the web.
CIRCULAR PENETRATION MIN. 0.15"d" "d" REF. SCHEDULE "H" < 0.7"d MIN. 0.15"d" TYP. 1/2" CLR. OR POINT LOAD ≥ "d" TO SUPPORT REF. SCHEDULE "W" CL OF BEAM OR POINT LOAD CONCRETE OVER METAL DECK REF. PLAN "t" "t" TOP AND BOTTOM PL EACH SIDE REF. SCHEDULE BOLTED CONNECTION WF BEAM REF. PLAN PROVIDE (2) ADDITIONAL STUDS PER FOOT OVER LENGTH OF OPENING 2x "d" MIN. TO NEXT PENETRATION REF. SCHEDULE "e"
