Concealed electrical components within casework require field coordination with the architect and owner prior to installation. Division 26 provides all conduits, enclosures, and a six-inch by six-inch by two-inch enclosure supplying a 120-volt alternating current circuit for duplex receptacles and hardwired turnstile power supplies. Additional power supplies must be provided as required to service total turnstile quantities shown on floor plans. A one-inch gasketed grommet accommodates wiring feeds inside the roughly two-foot by three-foot casework area.

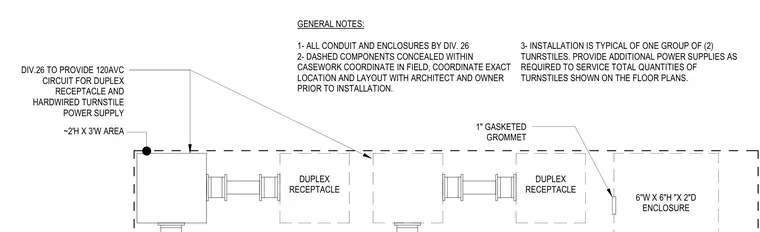

GENERAL NOTES: 1- ALL CONDUIT AND ENCLOSURES BY DIV. 26 2- DASHED COMPONENTS CONCEALED WITHIN CASEWORK COORDINATE IN FIELD, COORDINATE EXACT LOCATION AND LAYOUT WITH ARCHITECT AND OWNER PRIOR TO INSTALLATION. 6"W X 6"H "X 2"D ENCLOSURE DIV.26 TO PROVIDE 120AVC CIRCUIT FOR DUPLEX RECEPTACLE AND HARDWIRED TURNSTILE POWER SUPPLY DUPLEX RECEPTACLE 1" GASKETED GROMMET DUPLEX RECEPTACLE ~2'H X 3'W AREA 3- INSTALLATION IS TYPICAL OF ONE GROUP OF (2) TUNRSTILES. PROVIDE ADDITIONAL POWER SUPPLIES AS REQUIRED TO SERVICE TOTAL QUANTITIES OF TURNSTILES SHOWN ON THE FLOOR PLANS.
