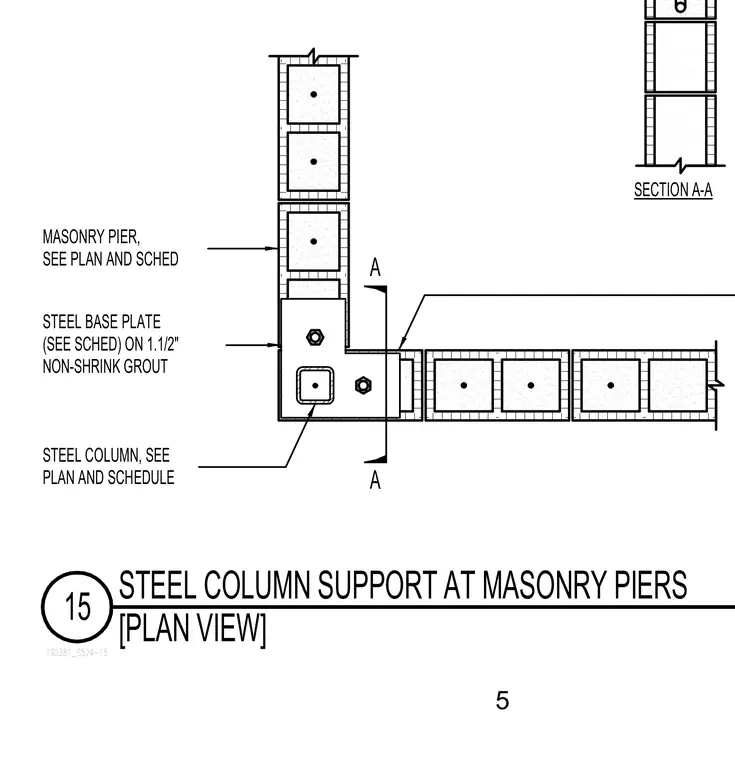

A steel column rests on a steel base plate set over 1 1/2 inches of non-shrink grout atop reinforced masonry piers, sized per plan and schedule. Section A-A indicates the vertical profile of the column bearing assembly relative to the masonry support.
190381_S524-15 15 STEEL COLUMN SUPPORT AT MASONRY PIERS [PLAN VIEW] SECTION A-A MASONRY PIER, SEE PLAN AND SCHED STEEL BASE PLATE (SEE SCHED) ON 1.1/2" NON-SHRINK GROUT STEEL COLUMN, SEE PLAN AND SCHEDULE A A 5
