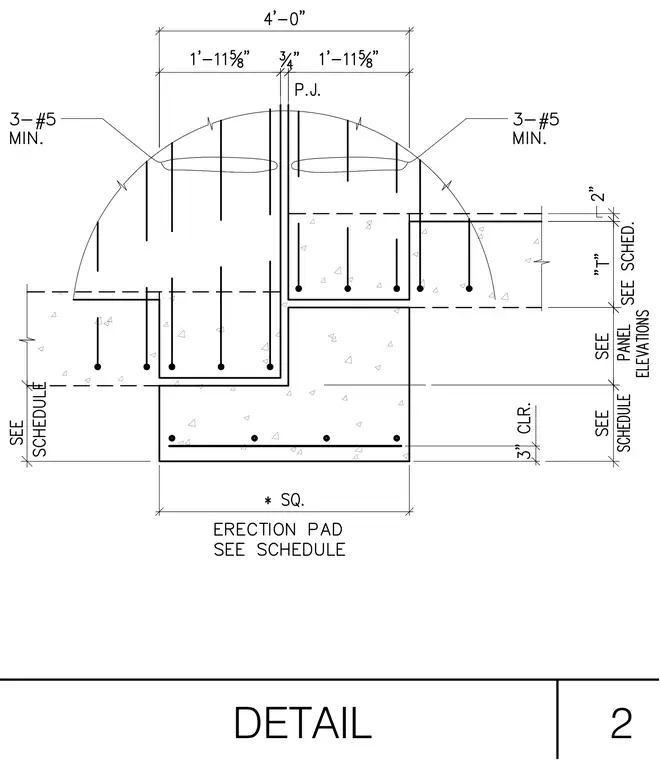

A reinforced concrete erection pad supports precast wall panels with a three-quarter-inch vertical panel joint between them. The concrete pad has a specified square dimension and three inches of concrete clearance to the bottom reinforcing steel. Each panel section features a thickness labeled as "T" and three number five reinforcing bars minimum across the connection. Panel dimensions and scheduled sizes are referenced to the structural schedules and panel elevations.
