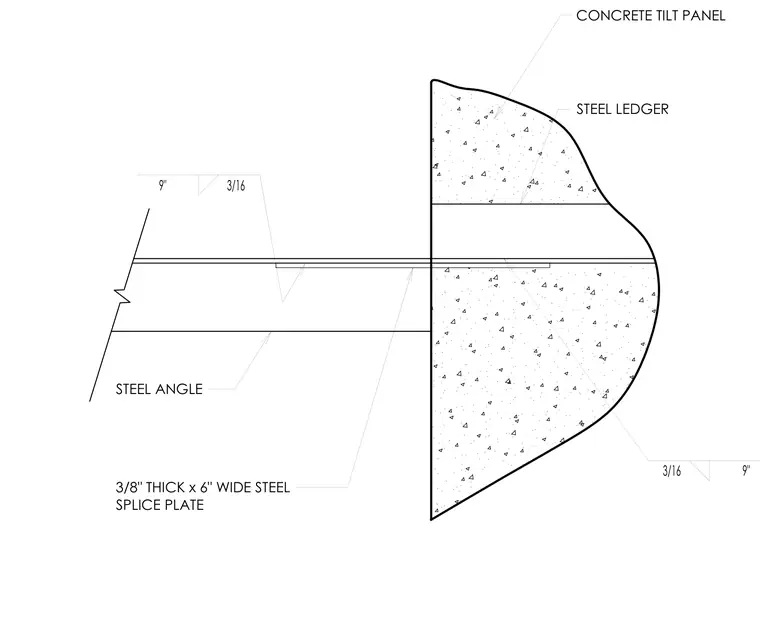

A steel angle connects to a steel ledger embedded in a concrete tilt-up panel. The joint is bridged by a three-eighths-inch thick by six-inch wide steel splice plate. Additional dimensional callouts indicate nine-inch spacings and three-sixteenths-inch plate or weld dimensions.
CONCRETE TILT PANEL STEEL LEDGER STEEL ANGLE 9" 3/16 3/8" THICK x 6" WIDE STEEL SPLICE PLATE 9" 3/16 / A A 4 4 A A V A As A 4 4 4 4 A A A 4 4 4 4 4 4 4 A \ 4 A 4 4 4 A 4 4 4 A A A 4 A A ■ 44 •4 4
