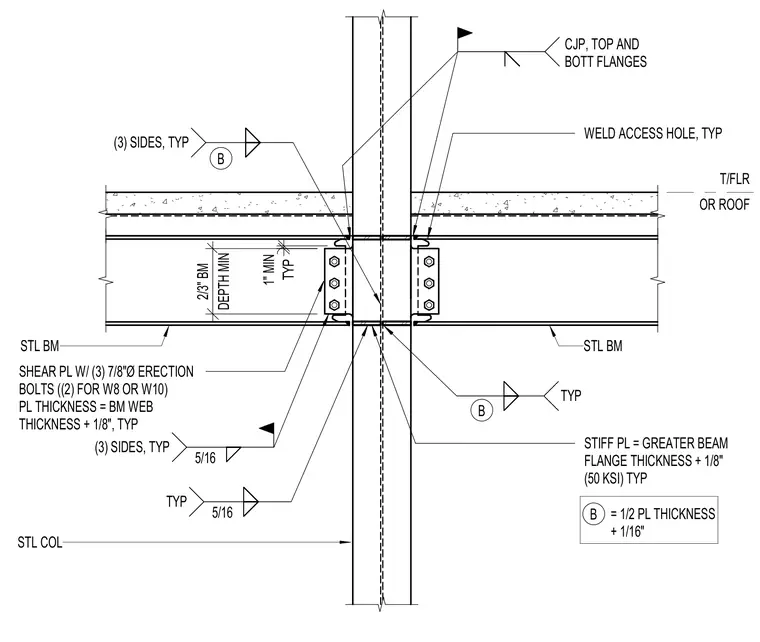

Steel beams frame into a continuous steel column utilizing complete joint penetration welds at the top and bottom flanges. A shear plate welded to the column web secures the beam web with three seven-eighths inch diameter erection bolts, reduced to two bolts for W8 or W10 framing members. The shear plate thickness equals the beam web thickness plus one-eighth of an inch. Beam stiffener plates sized at the greater beam flange thickness plus one-eighth of an inch with fifty KSI steel are welded to the column opposite the beam flanges. Five-sixteenth inch fillet welds are applied around three sides of the connection plates. Weld access holes are provided at the beam web and flange intersections.
TYP 1" MIN DEPTH MIN 2/3" BM STL BM STL COL SHEAR PL W/ (3) 7/8"Ø ERECTION BOLTS ((2) FOR W8 OR W10) PL THICKNESS = BM WEB THICKNESS + 1/8", TYP STL BM STIFF PL = GREATER BEAM FLANGE THICKNESS + 1/8" (50 KSI) TYP T/FLR OR ROOF WELD ACCESS HOLE, TYP B B = 1/2 PL THICKNESS + 1/16" B TYP 5/16 TYP 5/16 (3) SIDES, TYP (3) SIDES, TYP CJP, TOP AND BOTT FLANGES
