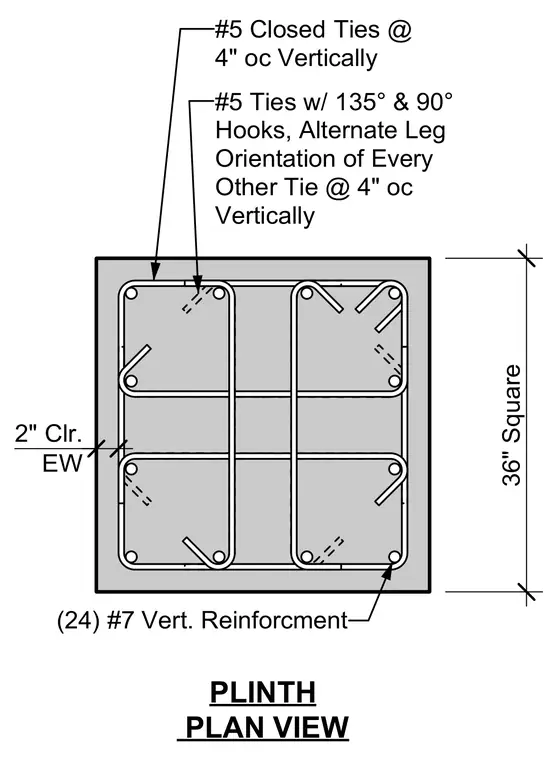

This structural detail shows a 36-inch square concrete plinth reinforced with twenty-four number 7 vertical reinforcement bars positioned with a 2-inch clear cover each way. The internal assembly utilizes number 5 closed ties spaced at 4 inches on center vertically. These ties feature 135-degree and 90-degree seismic hooks with alternating leg orientation on every other tie.
PLINTH PLAN VIEW #5 Closed Ties @ 4" oc Vertically #5 Ties w/ 135° & 90° Hooks, Alternate Leg Orientation of Every Other Tie @ 4" oc Vertically (24) #7 Vert. Reinforcment 2" Clr. EW 36" Square
