S-X97MB — Typical Steel Beam to Steel Column Connection

Structural · S-X97MB

Typical Steel Beam to Steel Column Connection

Materials

Elements

Columns Beams Decks Connections / Plates

About this detail

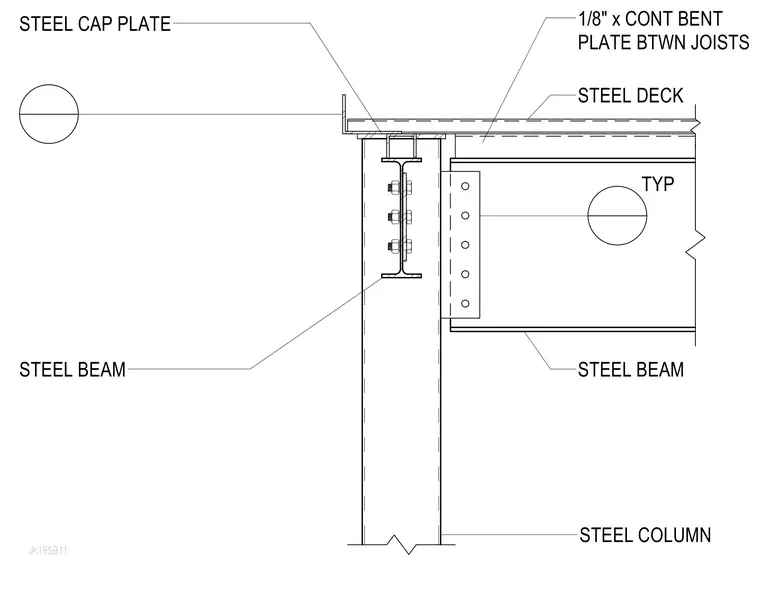

A steel beam connects to the flange of a supporting steel column using a bolted shear tab connection. A steel cap plate sits atop the column below a steel deck. A one-eighth inch continuous bent plate runs between the joists adjacent to the deck assembly.

JK1RSB11 STEEL BEAM STEEL COLUMN STEEL BEAM STEEL DECK STEEL CAP PLATE TYP 1/8" x CONT BENT PLATE BTWN JOISTS

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
