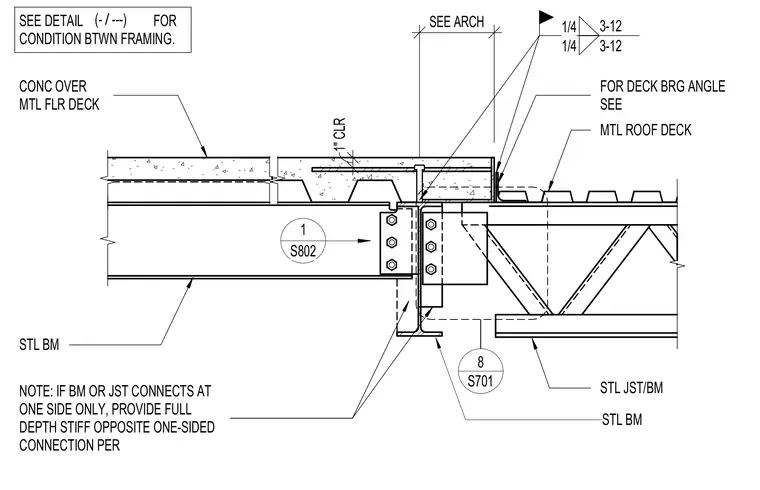

A steel beam frames into a supporting steel member with a bolted shear connection, maintaining a one-inch clearance at the slab edge. A steel joist or beam connects on the opposite side, requiring a full-depth stiffener plate opposite the one-sided connection when framing occurs on only one side. Concrete over metal floor deck bears adjacent to a metal roof deck with a specified deck bearing angle. Fillet welds are detailed at one-quarter inch spaced at three to twelve inches.
STL BM NOTE: IF BM OR JST CONNECTS AT ONE SIDE ONLY, PROVIDE FULL DEPTH STIFF OPPOSITE ONE-SIDED CONNECTION PER CONC OVER MTL FLR DECK FOR DECK BRG ANGLE SEE STL JST/BM MTL ROOF DECK 1/4 3-12 1/4 3-12 SEE ARCH STL BM 1" CLR S701 8 SEE DETAIL FOR CONDITION BTWN FRAMING. / (- ---) 1 S802
