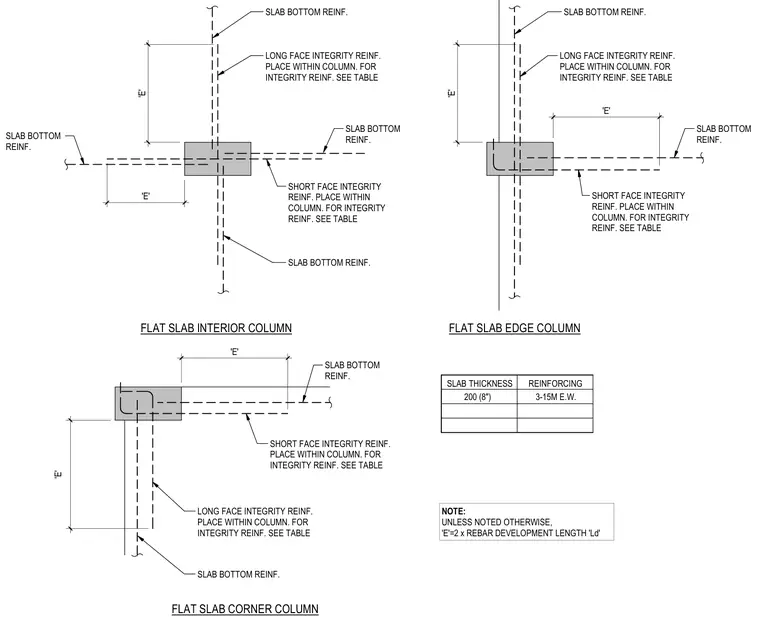

Continuous bottom reinforcing bars pass through interior, edge, and corner columns to provide structural integrity in flat slab construction. Long and short face integrity bars are placed directly within the column boundaries, with sizing determined per the slab bottom reinforcing table. Extension lengths 'E' equal two times the rebar development length unless noted otherwise. Edge and corner conditions incorporate anchored or hooked reinforcing details terminating at column boundaries.
LONG FACE INTEGRITY REINF. PLACE WITHIN COLUMN. FOR INTEGRITY REINF. SEE TABLE SLAB BOTTOM REINF. SLAB BOTTOM REINF. SHORT FACE INTEGRITY REINF. PLACE WITHIN COLUMN. FOR INTEGRITY REINF. SEE TABLE SLAB BOTTOM REINF. FLAT SLAB INTERIOR COLUMN LONG FACE INTEGRITY REINF. PLACE WITHIN COLUMN. FOR INTEGRITY REINF. SEE TABLE SLAB BOTTOM REINF. SLAB BOTTOM REINF. SHORT FACE INTEGRITY REINF. PLACE WITHIN COLUMN. FOR INTEGRITY REINF. SEE TABLE FLAT SLAB EDGE COLUMN SLAB BOTTOM REINF. SLAB BOTTOM REINF. SHORT FACE INTEGRITY REINF. PLACE WITHIN COLUMN. FOR INTEGRITY REINF. SEE TABLE FLAT SLAB CORNER COLUMN NOTE: UNLESS NOTED OTHERWISE, 'E'=2 x REBAR DEVELOPMENT LENGTH 'Ld' LONG FACE INTEGRITY REINF. PLACE WITHIN COLUMN. FOR INTEGRITY REINF. SEE TABLE 'E' 'E' 'E' 'E' 'E' 'E' SLAB BOTTOM REINF. SLAB THICKNESS REINFORCING 200 (8") 3-15M E.W.
