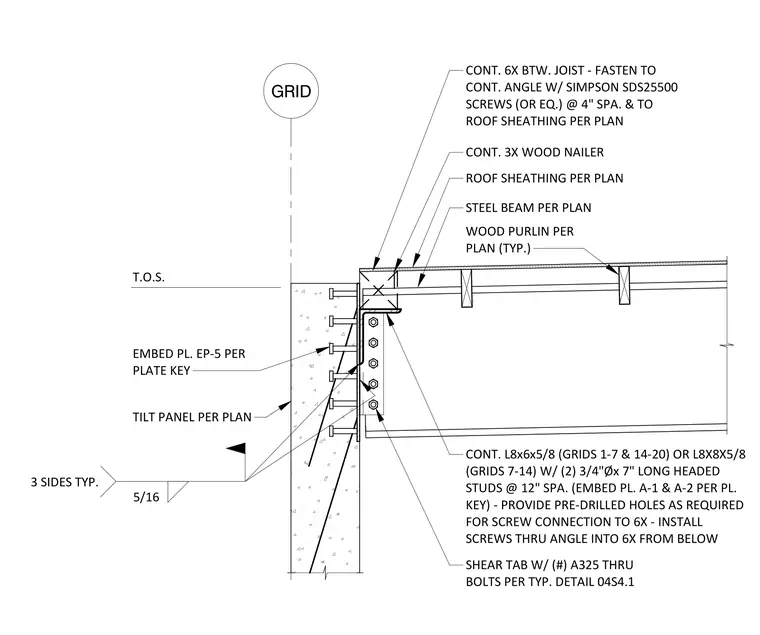

A continuous L8x6x5/8 or L8x8x5/8 steel angle anchors to the tilt-up panel via two 3/4-inch diameter by 7-inch long headed studs spaced at 12 inches on center, integrated into embed plate A-1 or A-2. A continuous 6x timber member fastens to the top of this angle using Simpson SDS25500 screws at 4 inches on center, which also secure the roof sheathing. The steel beam connects to the tilt-up panel via a shear tab with A325 through-bolts, as specified in detail 04S4.1. A continuous 3x wood nailer sits at the top of the assembly, and the angle welds to the embed plate with a 5/16-inch fillet weld on three sides.
Text on the drawing
F TILT PANEL PER PLAN ROOF SHEATHING PER PLAN T.O.S. CONT. 3X WOOD NAILER STEEL BEAM PER PLAN SHEAR TAB W/ (#) A325 THRU BOLTS PER TYP. DETAIL 04S4.1 EMBED PL. EP-5 PER PLATE KEY GRID WOOD PURLIN PER PLAN (TYP.) CONT. 6X BTW. JOIST - FASTEN TO CONT. ANGLE W/ SIMPSON SDS25500 SCREWS (OR EQ.) @ 4" SPA. & TO ROOF SHEATHING PER PLAN CONT. L8x6x5/8 (GRIDS 1-7 & 14-20) OR L8X8X5/8 (GRIDS 7-14) W/ (2) 3/4"Øx 7" LONG HEADED STUDS @ 12" SPA. (EMBED PL. A-1 & A-2 PER PL. KEY) - PROVIDE PRE-DRILLED HOLES AS REQUIRED FOR SCREW CONNECTION TO 6X - INSTALL SCREWS THRU ANGLE INTO 6X FROM BELOW 5/16 3 SIDES TYP.
