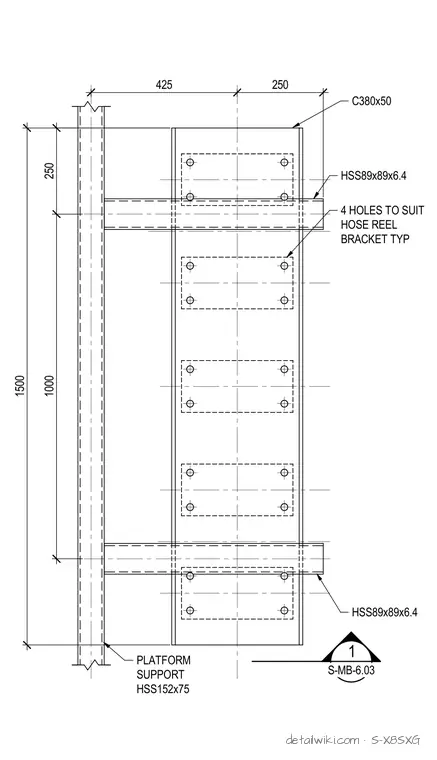

A channel member designated as C380x50 and secondary hollow structural section tubes designated as HSS89x89x6.4 frame horizontally from a vertical platform support hollow structural section designated as HSS152x75. The secondary hollow structural section tubes feature four holes to suit a hose reel bracket typically spaced along the vertical face. Dimensions of 1500, 1000, 425, and 250 establish the overall layout and spacing of the members. A detail reference marker denotes the assembly as detail 1 on sheet S-MB-6.03.
425 250 1500 1000 250 PLATFORM SUPPORT HSS152x75 HSS89x89x6.4 4 HOLES TO SUIT HOSE REEL BRACKET TYP C380x50 HSS89x89x6.4 1 S-MB-6.03
