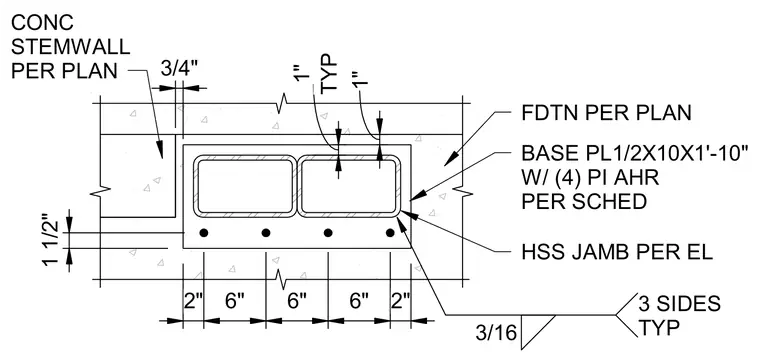

An HSS jamb connects to a concrete stemwall foundation sized per plan. The assembly uses a base plate measuring 1/2 inch by 10 inches by 1 foot 10 inches secured with four post-installed anchor rods per schedule. A typical 3/16 inch fillet weld joins three sides typically. Reinforcing and clearances are dimensioned relative to the concrete edge.
FDTN PER PLAN CONC STEMWALL PER PLAN HSS JAMB PER EL BASE PL1/2X10X1'-10" W/ (4) PI AHR PER SCHED 3/16 3 SIDES TYP 2" 6" 6" 6" 2" 1 1/2" TYP 1" 1" 3/4"
