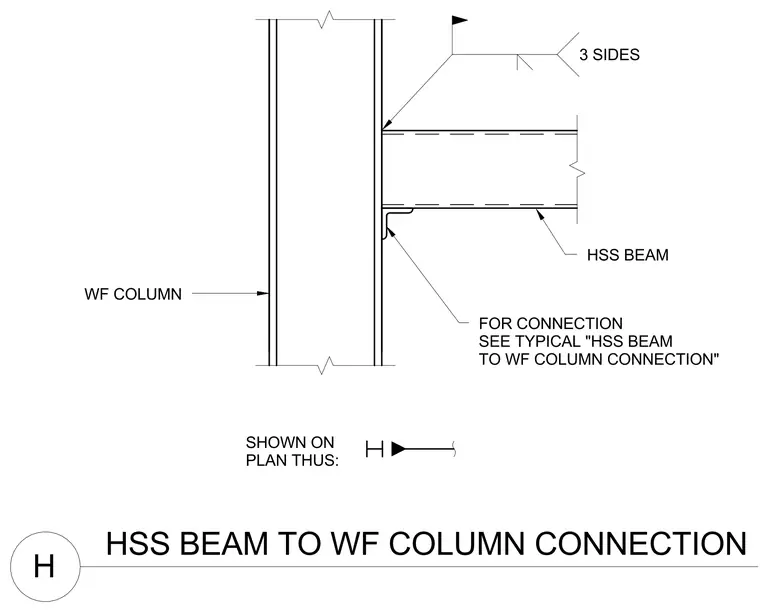

An HSS beam connects to a wide flange steel column using a bottom seat angle and welded connections. The top and sides of the HSS beam are welded to the column flange on three sides. A plan symbol indicator defines how the connection condition is referenced on structural layout drawings.
HSS BEAM TO WF COLUMN CONNECTION H SHOWN ON PLAN THUS: WF COLUMN HSS BEAM FOR CONNECTION SEE TYPICAL "HSS BEAM TO WF COLUMN CONNECTION" 3 SIDES
