HSS Outrigger and Wind Girt Connection at Roof Edge

Materials

Steel Timber / Wood Brick Stone Glass / Glazing Metal (misc.)

Elements

Beams Facades / Cladding Stairs Roofs Decks Arches Insulation Connections / Plates

Connections

HSS Connection

About this detail

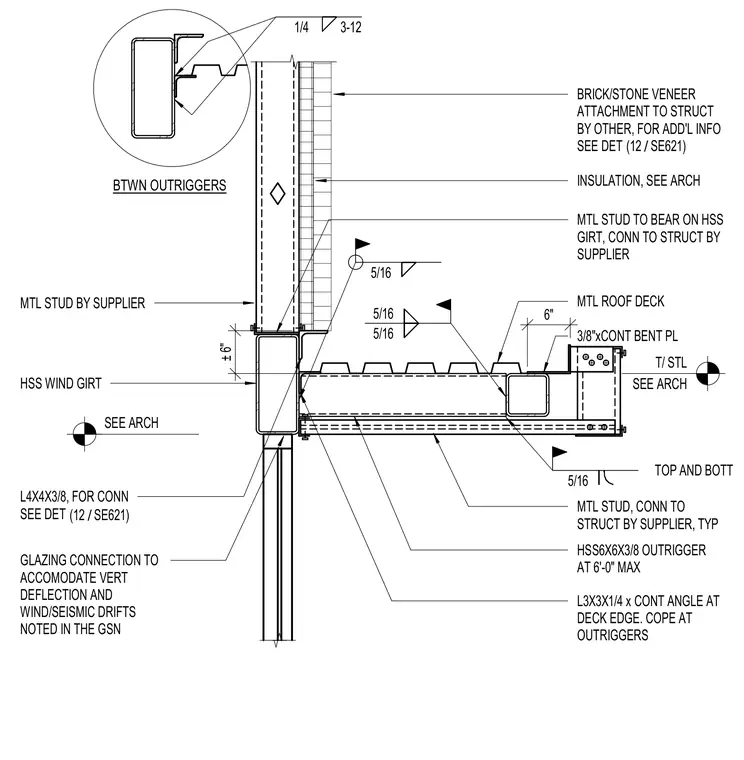

An HSS6x6x3/8 outrigger spaced at six feet maximum supports the metal roof deck, bearing on a continuous three-eighths-inch bent plate. An HSS wind girt receives metal studs from above, which bear directly on the girt with connections provided by the supplier. A continuous L3x3x1/4 angle occurs at the deck edge with a cope at the outriggers. An L4x4x3/8 angle provides supplementary connection detail. Fillet welds of five-sixteenths inch secure the structural members top and bottom between outriggers. Architectural notes specify brick and stone veneer attachments and glazing connections designed to accommodate vertical deflection and seismic drift.
