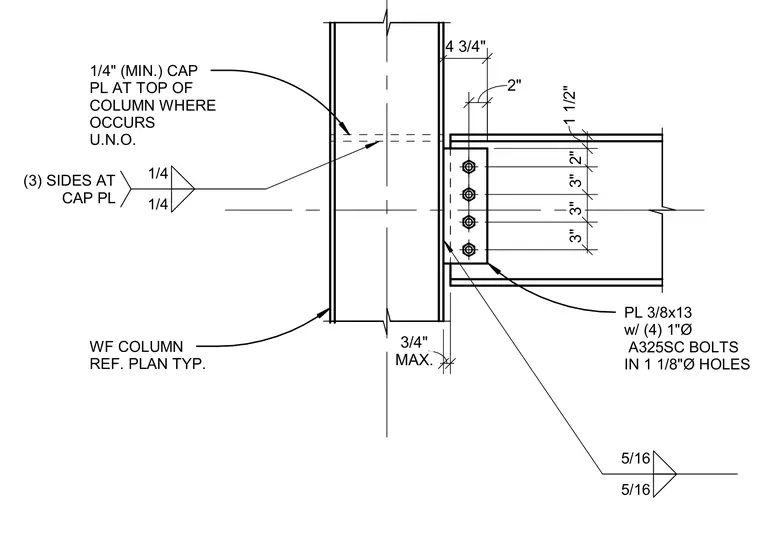

A wide flange beam frames into a wide flange column using a shop-welded and field-bolted shear tab connection. A 3/8-inch by 13-inch plate connects to the beam web with four 1-inch diameter A325SC bolts in 1 1/8-inch diameter holes. A minimum 1/4-inch cap plate is welded at the top of the column where required using 1/4-inch fillet welds on three sides. Five-sixteenths inch fillet welds secure the shear tab assembly.
WF COLUMN REF. PLAN TYP. 1/4" (MIN.) CAP PL AT TOP OF COLUMN WHERE OCCURS U.N.O. MAX. 3/4" 1 1/2" 2" 3" 3" 3" 2" 4 3/4" PL 3/8x13 w/ (4) 1"Ø A325SC BOLTS IN 1 1/8"Ø HOLES 1/4 1/4 (3) SIDES AT CAP PL 5/16 5/16
