Cold-formed metal stud tracks match the gauge of the framing studs and attach directly to the structural beam. Two shot pins spaced at sixteen inches on center secure the upper and lower tracks to the beam flanges. A slotted deep track accommodates vertical deflection where required by design.

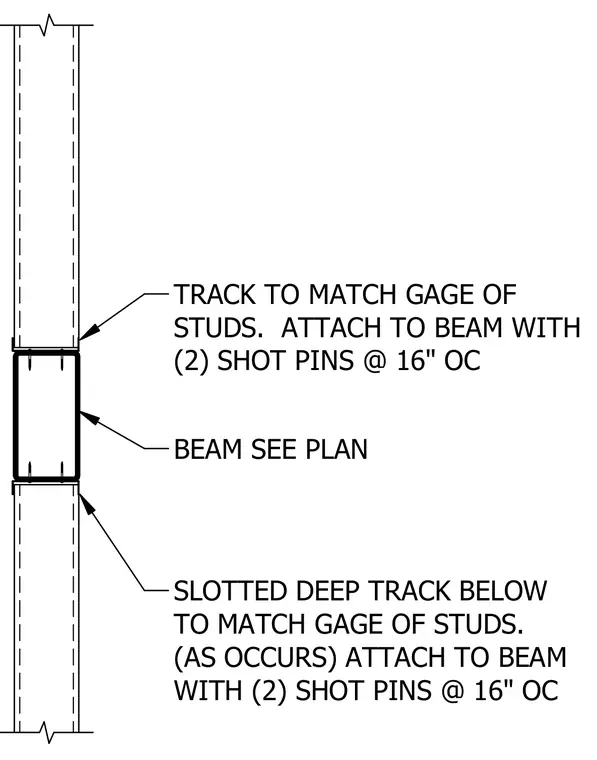

TRACK TO MATCH GAGE OF STUDS. ATTACH TO BEAM WITH (2) SHOT PINS @ 16" OC BEAM SEE PLAN SLOTTED DEEP TRACK BELOW TO MATCH GAGE OF STUDS. (AS OCCURS) ATTACH TO BEAM WITH (2) SHOT PINS @ 16" OC
