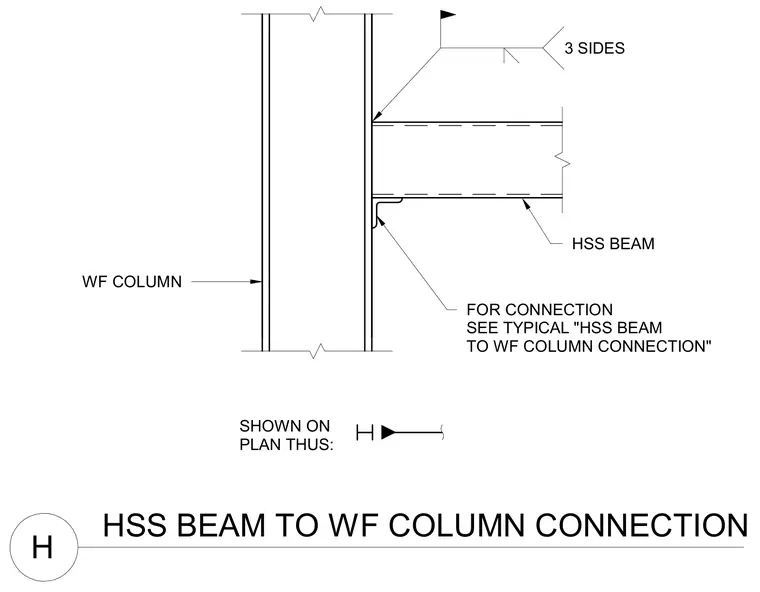

An HSS beam connects to a wide-flange steel column using a welded joint configuration. A weld symbol specifies a fillet or groove weld applied to three sides of the beam profile at the column flange. A supporting angle or plate detail is located at the underside of the beam bottom flange per typical connection standards.
HSS BEAM TO WF COLUMN CONNECTION H SHOWN ON PLAN THUS: WF COLUMN HSS BEAM FOR CONNECTION SEE TYPICAL "HSS BEAM TO WF COLUMN CONNECTION" 3 SIDES
